THE ROLE OF VIDEOLAPAROSCOPY IN THE DIAGNOSTIC AND THERAPEUTIC APPROACH OF NONPALPABLE TESTIS
( Download pdf )

DANIEL G. BITTENCOURT, MÁRCIO L. MIRANDA, ANA P.P. MOREIRA, SHOJI MIYABARA, J.M. BUSTORFF-SILVA

Section of Pediatric Surgery, School of Medicine, State University of Campinas, Unicamp, Campinas, São Paulo, Brazil

ABSTRACT

     Objective: Evaluate the results from the first 5 years of experience with laparoscopy for diagnosis and treatment of nonpalpable testes.
     Materials and Methods: Medical records of 51 patients submitted to laparoscopic testicular exploration, during a 5-year period, were retrospectively analyzed. Patients’ mean age was 65.7 months (median = 48) on the first procedure. The youngest patient was 10 months and the oldest was 14 years old on the first surgery. Twenty-four (47%) patients presented nonpalpable testes bilaterally, 7 (14%) only at the right side and 20 (39%) at the left, totaling 75 testicular units assessed. Patients who had their testes palpated after anesthetic induction were excluded from the study, and in all other cases, surgical management was based on the testicular position and viability. During the post-operative follow-up, surgical success was classified as palpable testis in scrotal sac, with adequate consistency and volume.
     Results: Nine (12%) testes were not localized, but their vessels and deferent duct were atrophic. Two (3%) testes were intra-abdominal and atrophic, and 2 (3%) gonads, in the same patient, had a dysmorphic aspect. Nineteen (25%) testicular units were located close to the internal inguinal ring (peeping testes) and, in 22 (29%) units, the spermatic vessels and deferent duct penetrated the internal inguinal ring. Eight (10%) testes were located at a distance of less than 2 cm from the internal inguinal ring and 13 (17%) at a distance greater than 2 cm. The 2 intra-abdominal atrophic testes were removed. Inguinotomy was performed in a total of 41 (54%) cases, reaching a surgical success of 89%. Laparoscopic orchiopexy in one stage, without vascular ligation, was performed in 9 (12%) testes, which presented a distance of less than 2 cm from the internal inguinal ring, also with a surgical success index of 89%. Orchiopexy in 2 stages, with ligation of the spermatic vessels, was performed in 13 (17%) testicular units located at a distance greater than 2 cm from the internal inguinal ring, reaching 77% of good results.
     Conclusion: Videolaparoscopy is a safe and effective method for diagnosis and treatment of nonpalpable testis.

Key words: testis; cryporchidism; diagnosis; therapeutics; laparoscopy
Int Braz J Urol. 2003; 29: 345-52

INTRODUCTION

     Cryptorchidism occurs in 0.8 to 1.2% of boys at 1 year old (1,2), and in 20% of them, the testis is nonpalpable (3), and it can be absent, intra-canalicular, or intra-abdominal.
     The diagnosis and treatment of nonpalpable testes have been controversial, however, in the last 20 years, since the introduction of laparoscopy, they have undergone major changes. First, it became one of the choices diagnostic methods, since imaging scans such as ultrasonography, computerized tomography, scintigraphy and magnetic resonance, do not offer a similar accuracy (4-7). In 1992, Jordan et al. (8) introduced the therapeutic application of laparoscopy in patients with nonpalpable testes and, since then, in addition to being a diagnostic method, it has been an option for treating this condition.
     This work’s objectives were: 1) To analyze the experience of the first 5 years following the introduction of videosurgery for diagnosis and treatment of nonpalpable testes in our service; 2) To access the surgical success of different orchiopexy techniques; 3) To assess the need of exploring the inguinal canal in cases where laparoscopy identifies spermatic vessels and deferent duct penetrating the internal inguinal ring.

MATERIALS AND METHODS

     In the period from March 1996 to April 2001, 51 patients underwent diagnostic and therapeutic laparoscopy in our service. Patients’ mean age was 65.7 months (median = 48) on the first procedure and 64.58 months (median = 50) on the second surgery. The youngest patient was 10 months and the oldest was 14 years old on the first surgery.
     Twenty-four (47%) patients presented nonpalpable testes bilaterally, 7 (14%) only at the right side and 20 (39%) at left, totaling 75 testicular units assessed (Table-1).



     Twenty-two (43%) patients presented co-morbidities (Table-1). Thirty-nine (76%) patients were White and the others were Mulatto or Black, and there was none patient of Asian origin. Twenty-five (48%) patients underwent pelvic and inguinal ultrasonography, and in only 10 (40%) the result coincided with the surgical finding. Stimulation with b-HCG was performed in 5 (9,6%) patients with bilateral nonpalpable testes, without change of testicular position at the post-treatment assessment.
     All patients were submitted to inhalatory and intravenous general anesthesia, followed by testicular palpation. Those patients who had their testes palpated at this moment were excluded from the study and were submitted to inguinotomy. The surgical technique that was employed included gastric stenting, vesical drainage and Trendelenburg’s position; infraumbilical incision and the confection of a pneumoperitoneum with Veress needle, insufflating carbon dioxide at pressures of 8 to 10 mmHg. Then a 10 mm trocar was introduced through the incision, enabling the investigation of the peritoneal cavity with an optic (30°) of 10 mm. First, potential injuries to hollow viscera and other organs were assessed; next, the following was evaluated: region of internal inguinal ring, spermatic vessels and deferent duct, testicular size and position, in addition to comparison with the contralateral unit.
     In cases of absent testicular structure, with spermatic vessels and deferent in blind sac, the laparoscopic procedure was terminated. When the testis was next to the internal inguinal ring (peeping testes), the inguinotomy was preferred, because, in our experience, such testicular position allows for the classic orchiopexy with good results. If elements of the spermatic cord penetrating the internal inguinal ring were identified, the exploration was proceeded by inguinal route and, when a viable testis was identified, orchiopexy was performed.
     In all other situations, 2 auxiliary trocars, one of 10 mm and other of 5 mm, were located in both hemiclavicular lines at the level of the umbilicus scar, under direct visualization. Patients with bilateral cryptorchidism were treated in a single time.
     When the testis was located at less than 2 centimeters from the internal inguinal ring, the laparoscopic orchiopexy in one stage was performed, which consisted in the distal section of the gubernaculum, if present; dissection of the peritoneum laterally to the spermatic vessels, mobilizing the vessels and the deferent for an extension of 8 to 10 cm of their retroperitoneal position. The vessels were preserved by blunt dissection, avoiding electrocoagulation. Upon completing the dissection, the testis was free of adhesions to the posterior abdominal wall, with the spermatic vessels and the deferent duct. At this moment, a laparoscopic clamp (Grasping or Maryland) was introduced, from a new internal inguinal ring created medially to the obliterated ipsilateral umbilical artery, up to the scrotal sac. A small incision and a sub-dartos pouch were created in the scrotum, through which a 5 mm trocar, followed by a Grasping clamp, were introduced into the peritoneal cavity. The testis was then driven to his position within the sub-dartos pouch in the scrotum, pulled by the gubernaculum, aiming not to injury its vascular supply. The desufflation of the pneumoperitoneum provided an additional extension to the testicular position.
     In cases of testes that were more than 2 centimeters away from the internal inguinal ring, the laparoscopic orchiopexy in 2 times was performed, which consisted initially in ligation of the spermatic vessels with metallic clips and their section. The laparoscopic orchiopexy was performed in a second time, usually with a 6-month interval from the first surgery. Closure of the internal inguinal ring was not performed in any case of laparoscopic orchiopexy.

RESULTS

Laparoscopic Findings
     Videolaparoscopy defined the intraabdominal anatomy in all cases. Nine (12%) testes were not localized, however their vessels and vas deferens were atrophic. Two (3%) testes were intraabdominal and atrophic and 2 (3%) gonads, in the same patient, had a dysmorphic aspect. Nineteen (25%) testicular units were located next to the internal inguinal ring (peeping testes) and, in 22 (29%) cases, the spermatic vessels and the deferent duct penetrated the internal inguinal ring. Eight (10%) testes were located at a distance of less than 2 cm from the internal inguinal ring, and 13 (17%) at a distance greater than 2 cm.

Surgical Management
     The 2 intraabdominal atrophic testes were removed, by laparoscopic approach in one case, and by inguinal approach on the second one.
     The 2 gonads with dysmorphic aspect were biopsied by laparoscopy. The histological analysis showed viable testicular tissue in one of them, with laparoscopic orchiopexy without vascular ligation being performed.
     Inguinotomy was performed in a total of 41 (54%) cases: in 19 testicular units located next to the internal inguinal ring and in those 22 where the spermatic vessels and the vas deferens penetrated the internal inguinal ring. Among those, 13 units presented anorchia or testicular atrophy on inguinotomy, with the excision of testicular remnants being performed. In the remainder 28 units, open orchiopexy was completed.
     Laparoscopic orchiopexy without vascular ligation, in one stage, was performed in 9 (12%) testes: 8 that presented a distance of less than 2 cm from the internal inguinal ring, in addition to the unit with dysmorphic aspect that had been submitted to biopsy.
     Orchiopexy with ligation of spermatic vessels in 2 stages was performed in 13 (17%) testicular units located at a distance superior to 2 cm from the internal inguinal ring. The interval between the first and the second procedure was 6 months.

Surgical Result

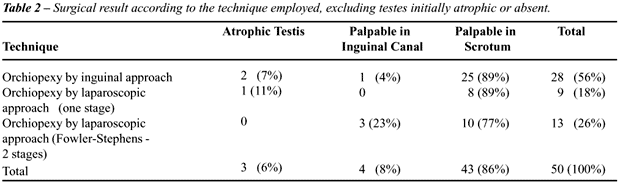

     After a mean follow-up of 11.2 months, the findings of physical examination of the 50 testicular units driven to the scrotum were analyzed in order to evaluate the surgical success, that is, topical testes in the scrotum, with adequate volume and consistency (Table-2).



     Of the 28 testicular units that were driven to the scrotum by open orchiopexy, 25 (89%) were palpable in the scrotum with adequate consistency and volume; one (4%) in low inguinal canal and 2 (7%) evolved with atrophy.
     Of the 22 testes driven to the scrotum by videolaparoscopy, 9 were driven to the scrotum without vascular ligation, in one stage, with 89% of success and only one (11%) testicular atrophy. 13 were operated by Fowler-Stephens technique with ligation of vessels, in 2 stages, reaching 77% of good results, with 3 (23%) palpable testes in the inguinal canal. Relative to the non-closing of the internal inguinal ring in cases of laparoscopic orchiopexy, no inguinal herniation was identified in the follow-up.

Pathological Study
     It was performed in 17 testes: in the 2 intra-abdominal atrophic testes, it revealed cells in the prepubertal developmental stage; in the 2 dysmorphic gonads that were submitted to biopsy, it demonstrated a dysgenic gonad and a rudimentary testis. However, in the 13 units where the spermatic vessels and the vas deferens penetrated the internal inguinal ring, during the inguinal exploration, testicular atrophy or anorchia were identified, demonstrating lack of testicular tissue in 11 cases, scaring tissue in 1 and cells in the prepubertal developmental stage in another.

Second Surgery
     Inguinotomy and orchiopexy were performed due to testicular atrophy, detected in the post-operative follow-up, in 3 units: 2 of them were initially located in the internal inguinal ring, and had underwent orchiopexy by inguinal approach on the first surgery, whereas the third unit had been driven to the scrotum by laparoscopy in one step.

DISCUSSION

     The main reasons for investigating nonpalpable testes and their position in the scrotum when present, are to preserve fertility, to make the testicular examination easier anticipating the diagnosis of an eventual malignant transformation, in addition to esthetic and psychological factors.
     The traditional method for investigating a nonpalpable testis consists in an exploration by inguinotomy, or by lower abdominal approach. Videosurgery was used for this purpose, for the first time, in 1976, by Cortesi et al. (9) and, since then, it has been improved and used, as well, for therapeutic purposes.
     Considering the occasional difficulties for driving an abdominal testis to the scrotum, several techniques were described. Orchiopexy by inguinal approach is feasible in cases of testes next to the internal inguinal ring. The procedure by inguinal approach in 2 stages, not used in this series, has the disadvantage of technical difficulty in the second stage, which can lead to testicular injury, or damage of the spermatic cord (10). Autotransplantation, that is not performed in our service as well, requires microvascular surgery techniques and a prolonged hospitalization time (11,12). The ligation of spermatic vessels, as postulated by Fowler & Stephens, has a testicular atrophy index around 30% (13,14); that can be lowered to about 10%, when the procedure is performed in 2 stages, allowing the development of collateral circulation (15).
     The mean age of patients in our sample was high (mean = 65.7 and median = 48 months), reflecting a probable delay in the diagnosis or in the referral of boys with nonpalpable testes to the tertiary care service. Once the follow-up in our service was initiated, there was no investment in imaging studies or hormone therapy, due to their limited results according to the literature. In this series, 48% of patients underwent ultrasonographic investigation, mostly before referral, and in only 40% of the cases, the findings coincided with the surgical anatomy.
     Analyzing the results on a laterality basis, we observed that among the 24 patients (48 testicular units) who presented nonpalpable testes bilaterally, 18 (75%) presented associated pathologies, 10 (21%) absent or atrophic testicular units and 13 (27%) units in “high” position (> 2 cm from the internal inguinal ring). Among the 7 patients who presented nonpalpable testes only at the right side, 2 (28%) presented associated pathologies, only 1 (14%) missing unit and none unit in high position. We observed 20 nonpalpable units only at the left side, with 2 (10%) presenting associated pathologies, 14 (70%) absence or atrophy and none high unit. The highest incidence of associated pathologies in patients with nonpalpable testes bilaterally is probably because patients bearing neuropathies, male pseudo-hermaphroditism, prune-belly syndrome and mixed gonadal dysgenesis, often evolve with cryptorchidism. The analysis based on laterality also suggests that the “high” position of intra-abdominal testes is more frequent in bilateral defects and that anorchia or testicular atrophy are more commonly observed in cases where the defect occurs only at the left side.
     One of the purposes of this study was to assess the surgical result of the 3 different techniques that are used in our service. Orchiopexy by inguinal approach and laparoscopic orchiopexy without ligation of vessels presented a surgical success (adequate testicular volume and position) of 89%, whereas laparoscopic orchiopexy in 2 stages (Fowler-Stephens), obtained 77% of good results; values that are consonant to the literature (13-16).
     Inguinal exploration, in cases where laparoscopy had identified spermatic vessels and deferent duct penetrating the internal inguinal ring, proved to be necessary, because in 9 cases (41%) viable testes were found and driven successfully to the scrotum. In this sample, such exploration was performed by inguinal approach in all cases, due to the team’s larger experience with this approach. However, by retrospectively assessing and based on data from the literature (17-19), we do not see a reason why such exploration is not made by laparoscopic approach, since it has showed to be safe and effective. Such management could avoid the use of 2 approaches (laparoscopy and inguinotomy) for obtaining the same objective.
     Schleef et al. (19) suggest the inguinal laparoscopic exploration in cases where one can observe hypoplastic elements of the spermatic cord penetrating the internal inguinal ring. Such study, based also in findings from other works (20-22), suggests the hypothesis that in cases where hypoplastic elements of the spermatic cord penetrate a closed internal inguinal ring, there is never a normal testis in the inguinal canal. In our sample, it was possible to identify 2 cases on the definition above, and in none of them a viable testis was found in the inguinal canal. Our sample of inguinal laparoscopic exploration is still small, with a larger number of studies being required to confirm such hypothesis.
     Those who oppose to laparoscopy for diagnosis and treatment of nonpalpable testes claim that the procedure is longer, brings a risk of long-term adhesions, in addition to subjecting the patients with testis, or testicular remnants, in inguinal canal, to a needless procedure in 48 to 64% of cases (23-25). In 54% of the children in this sample, the exploration of the inguinal pathway was performed by inguinotomy after the laparoscopic identification of spermatic vessels penetrating the internal inguinal ring. Nevertheless, data from the literature (19-22) show that even in these cases it is possible to perform orchiopexy by laparoscopic exploration of the inguinal pathway. This approach would have the advantage of avoiding the performance of an inguinotomy in patients whose procedure had already been initiated by laparoscopic route.
     Evaluating the literature data about false-negative inguinal explorations (26), in addition to the risk of in-situ carcinoma in cryptorchid testes (27-28), we should engage in the definitive laparoscopic diagnosis. It is worth to remember that some laparoscopic procedures were canceled, with an inguinotomy performed, due to palpation of the testis after anesthetic induction. This results from the fact that the muscle relaxation and the immobilization of the child contribute to testicular palpation. Despite of this, in 9 cases, testes located in the inguinal canal were not palpated. Laparoscopy allowed their correct localization and their treatment by inguinal approach.

CONCLUSION

     Laparoscopy showed to be a safe and effective method for assessment and treatment of nonpalpable testes. It enabled that intraabdominal anatomy was accurately defined in all cases, providing higher safety in dissection of delicate structures, under direct visualization. If also offered a fast recovery to the patient, with excellent esthetic results. Non-closure of the internal inguinal ring did not result in inguinal hernia.

REFERENCES

1. Scorer CG: The descent of the testis. Arch Dis Child. 1964; 39: 605-9.
2. Berkowitz GS, Lapinski RH, Dolgin SE: Prevalence and natural history of cryporchidism. Pediatrics 1993; 92: 44-7.
3. Elder JS: The undescended testis: hormonal and surgical management. Surg Clin North Am. 1988; 68: 983-1005.
4. Bloom DA: Two-step orchiopexy with pelviscopic clip ligation of the spermatic vessels. J Urol. 1991; 145: 1030-4.
5. Bogaert GA, Kogan BA, Mevorach RA: Therapeutic laparoscopy for intraabdominal testes. Urology 1993; 42: 182-4.
6. Caldamone AA, Amaral JF: Laparoscopic two-stage Fowler-Stephens orquiopexy. J Urol. 1994; 152: 1253-5.
7. Elder JS: Two-stage Fowler-Stephens orquiopexy in the management of intraabdominal testes. J Urol. 1992; 148: 1239-42.
8. Jordan GH, Robey EL, Winslow BH: Laparoscopic surgical management of the abdominal/transinguinal undescended testicle. J Endourol. 1992; 6: 159.
9. Cortesi N, Ferrari P, Zambarda E, Manenti A, Baldini A, Pignatti-Morano F: Diagnosis of bilateral abdominal cryporchidism by laparoscopy. Endoscopy 1976; 8: 33-4.
10. Steinhardt GF, Kroovand RL, Perlmutter AD: Orchiopexy: planned 2-stage technique. J Urol. 1985; 133: 434-5.
11. Harrison CB, Kaplan GW, Scherz HC, Packer MG, Jones J: Microvascular autotransplantation of the intra-abdominal testis. J Urol. 1990; 144: 506-7.
12. Boddy SA, Gordon AC, Thomas DFM, Browning FSC: Experience with the Fowler-Stephens and microvascular procedures in the management of intra-abdominal testes. Br J Urol. 1991; 68: 199-202.
13. Snyder HM III, Duckett JW: Orchidopexy with division of spermatic vessels: review of ten years experience. J Urol. 1984; 131: 126A.
14. Clatworthy HW Jr, Hollabaugh RS, Frosfeld JL: The “long-loop vas” orchidopexy for the high undescended testis. Am Surg. 1972; 38: 69-73.
15. Ransley PG, Vordermark JS, Caldamone AA, Bellinger M: Preliminary ligation of the gonadal vessels prior to orchidopexy for the intra-abdominal testicle: a stage Fowler-Stephens procedure. World J Urol. 1984; 2: 266-8.
16. Dénes FT, Silva FAQ, Girón AM, Arap S: Laparoscopic evaluation and treatment of the impalpable testis. Braz J Urol. 2001; 27: 380-5.
17. Humphrey GM, Najmaldin AS, Thomas DF: Laparoscopy in the management of the impalpable undescendent testis. Br J Surg. 1998; 85: 983-5.
18. Lindgren W, Franco I, Blick S, Levitt SB, Brock WA, Palmer LS, et al.: Laparoscopic Fowler-Stephens orchidopexy for the high abdominal testis. J Urol. 1999; 162: 990-4.
19. Schleef J, von Bismarck S, Burmucic K, Gutmann A, Mayr J: Groin exploration for nonpalpable testes: laparoscopic approach. J Pediatr Surg. 2002; 37: 1552-5.
20. Baillie CT, Fearns G, Kitteringham L, Turnock RR: Management of the impalpable testis: the role of laparoscopy. Arch Dis Child. 1998; 79: 419-22.
21. Grandy RW, Mitchell ME, Carr MC: Laparoscopic and histologic evaluation of the inguinal vanishing testis. Urology 1998; 52: 866-9.
22. Topuzlu Tekant G, Emir H, Eroglu E, Akman M, Buyukunal C, Danismend N, et al.: Experience with laparoscopy in nonpalpable testis. Eur J Pediatr Surg. 2001; 11: 177-81.
23. Moore RG, Peters CA, Bauer SB, Mandell J, Retik AB: Laparoscopic evaluation of the nonpalpable testis: a prospective assessment of accuracy. J Urol. 1994; 151: 728-31.
24. Duckett JW: Pediatric laparoscopy: prudence, please. J Urol. 1994; 151: 742-3.
25. Molenaar JC, Hazebroek FW: Diagnostic laparoscopy should not be routinely done in nonpalpable testes. Neder Tijdschr Geneesk. 1993; 137: 582-3.
26. Lakoo K, Thomas DFM, Najmaldin AS: Is inguinal exploration for the impalpable testis an outdated operation? Br J Urol. 1996; 77: 452-4.
27. Sexton WJ, Assimos DG: Laparoscopy for the adult cryptorchidic testicle. Tech Urol. 1999; 5: 24-8.
28. Rogers E, Teahan S, Gallagher H, Butler MR, Grainger R, McDermott TE, et al.: The role of orchiectomy in the management of postpuberal cryptorchidism. J Urol. 1998; 159: 851-4.
