Current Status of Natural Orifice Trans-endoscopic Surgery (NOTES) and Laparoendoscopic Single Site Surgery (LESS) in Urologic Surgery
( Download pdf )

Review Article

doi: 10.1590/S1677-55382010000400002

Rafael E. Sanchez-Salas, Eric Barret, John Watson, Oleksandr Stakhovskyi, Xavier Cathelineau, Francois Rozet, Marc Galiano, Abhay Rane, Mihir M. Desai, Rene Sotelo, Guy Vallancien

Department of Urology (RESS, EB, JW, OS, XC, FR, MG, GV), Institute Montsouris, Paris, France, Urology (AR), East Surrey Hospital, Redhill, United Kingdom, Department of Urology (MMD), USC Norris Comprehensive Cancer Center and Hospital, University of Southern California, USA, and Centro de Robotica y de Invasion Minima Unidad de Urologia (RS), Instituto Medico La Floresta, Caracas, Venezuela

ABSTRACT

     Laparoendoscopic single site surgery (LESS) and natural orifice transluminal endoscopic surgery (NOTES) represent novel approaches in urological surgery. To perform a review of the literature in order describe the current status of LESS and NOTES in Urology. References for this manuscript were obtained by performing a review of the available literature in PubMed from 01-01-02 to 15-05-09. Search terms included single port, single site, NOTES, LESS and single incision. A total of 412 manuscripts were initially identified. Out of these, 64 manuscripts were selected based in their urological content.
     The manuscript features subheadings for experimental and clinical studies, as NOTES-LESS is a new surgical technique and its future evolution will probably rely in initial verified feasibility. A subheading for reviews presents information regarding common language and consensus for the techniques. The issue of complications published in clinical series and the future needs of NOTES-LESS, are also presented.

Key words: laparoscopy; urology; robotic surgery; minimally invasive procedures; NOTES; LESS
Int Braz J Urol. 2010; 36: 385-400

INTRODUCTION

     Natural orifice transluminal endoscopic surgery (NOTES) involves the intentional penetration of hollow viscera with an endoscope in order to access the abdominal cavity and perform an intraabdominal operation (1). In 2002, Gettman et al. reported the first experience with NOTES, performing transvaginal nephrectomies in pigs (2). The initial clinical experience in NOTES was performed by Antony Kalloo in transgastric surgery in 2004 (3).
     Closely related to NOTES, laparo-endoscopic single-site surgery (LESS) describes minimally access surgical procedures that are performed through a single incision/location (4). Rane et al. published the first true LESS experience in abstract form in 2007, performing a transumbilical laparoscopic nephrectomy (5).
     Currently, the application of NOTES-LESS has been expanding in the clinical setting and several experiences have been reported. The preliminary experience with NOTES has confronted several questions, such as the safety entrance into a healthy hollow organ lumen and adequate closure methods (6). Single site surgery has likewise faced questions regarding the added difficulty from lack of triangulation of instruments. Nonetheless, Urology has significantly participated in the development of minimal access surgical techniques, and NOTES-LESS is steadily gaining momentum in our field.


RATIONALE FOR NOTES AND LESS

     NOTES-LESS are attractive surgical approaches due to several potential benefits and advantages. With NOTES there are no abdominal incisions and, therefore, abdominal wound infections and incisional hernias could be potentially avoided. This could also translate into less pain and improved cosmesis. In NOTES, the translumenal access to the peritoneal cavity may have definite advantages in situations whereby the transcutaneous path into the peritoneal cavity is not optimal, as in obese patients (7). Of further interest, consistently reduced levels of TNF-alpha have been observed in experimental experiences with NOTES in animal models in the late postoperative period. This suggests an immunomodulatory effect of the NOTES not present in laparoscopy or laparotomy (8).
     LESS likewise offers the potential advantages of a more rapid recovery, fewer adhesions, fewer opportunities for hernias, and less postoperative ileum. Esthetically, use of a single incision minimizes the visible evidence of surgical intervention. This is most notable when the natural scar of the umbilicus is used for the port site. Furthermore, the risk related to the use of ports has been reported in 0.003-0.3% for both vascular and visceral injuries (9).


THE CHALLENGE OF NOTES AND LESS

     Both NOTES-LESS drastically limit the surgeon’s ability to choose the site of entry for operative instruments. Therefore, the advantages NOTES-LESS are gained with the caveat of difficult surgical performance due to the lack of space.
     NOTES present the additional challenges of access to the peritoneal cavity through a hollow viscus. The safety of this strategy is of utmost importance, and studies are needed to evaluate the long-term consequences of the breach of a hollow viscus of the gastrointestinal or urinary tract. Flexible or small-bore instruments are required to utilize natural orifices, and this can present a challenge in maintaining orientation within the surgical space. Adequate transmission of force through flexible instruments for dissection and retraction may also present added complexity. Overcoming these limitations in NOTES and LESS require a great deal of laparoscopic experience and skill, and the application of novel instruments and techniques.


THE STEPWISE PROGRESS OF MINIMAL ACCESS SURGERY

     The purpose of the laparoscopic approach has been clear: to provide improved tolerability and decreased morbidity while delivering the same or better clinical outcomes as open surgery (10). Laparoscopic surgery was not generated de novo; rather, it was developed by applying the techniques and standards developed in open surgery to the laparoscopic environment.
     A similar evolutionary process has contributed to the progress of NOTES-LESS. Early laboratory research has been focused on feasibility. Animal and cadaveric models have been used to demonstrate the possible applications of NOTES and LESS, including transgastric peritoneoscopy, tubal ligation, gastrojejunostomy, partial hysterectomy, oophorectomy, and transcolonic exploration, liver biopsy and cholecystectomy (11). Investigation has also been brought to the operative suite - ablative and reconstructive procedures using NOTES-LESS have been reported by many surgical teams, utilizing a variety of techniques, devices and approaches.


NOTES-LESS IN UROLOGY

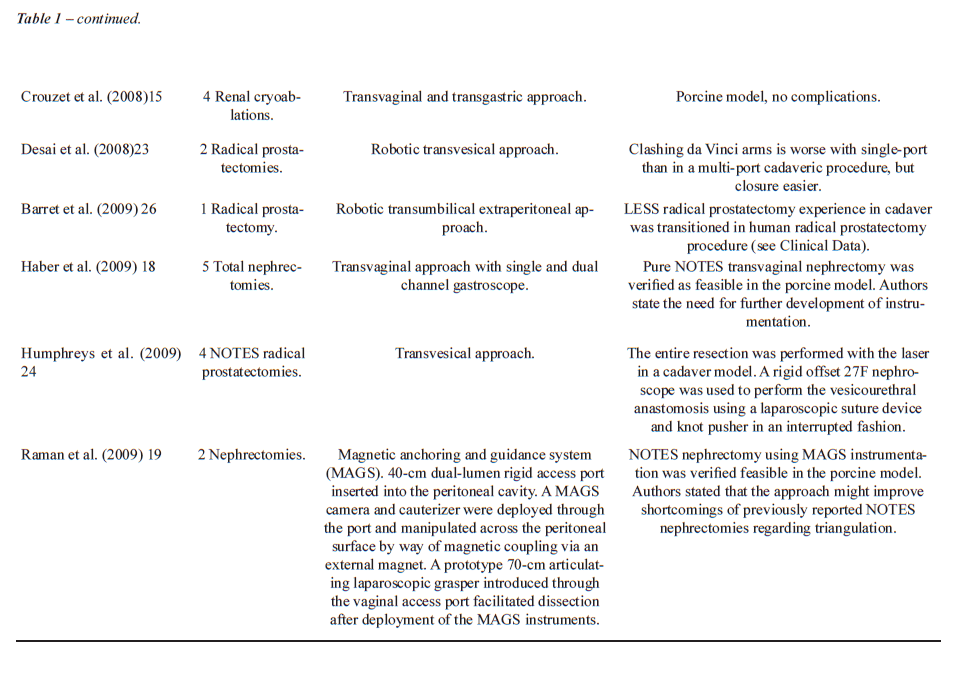

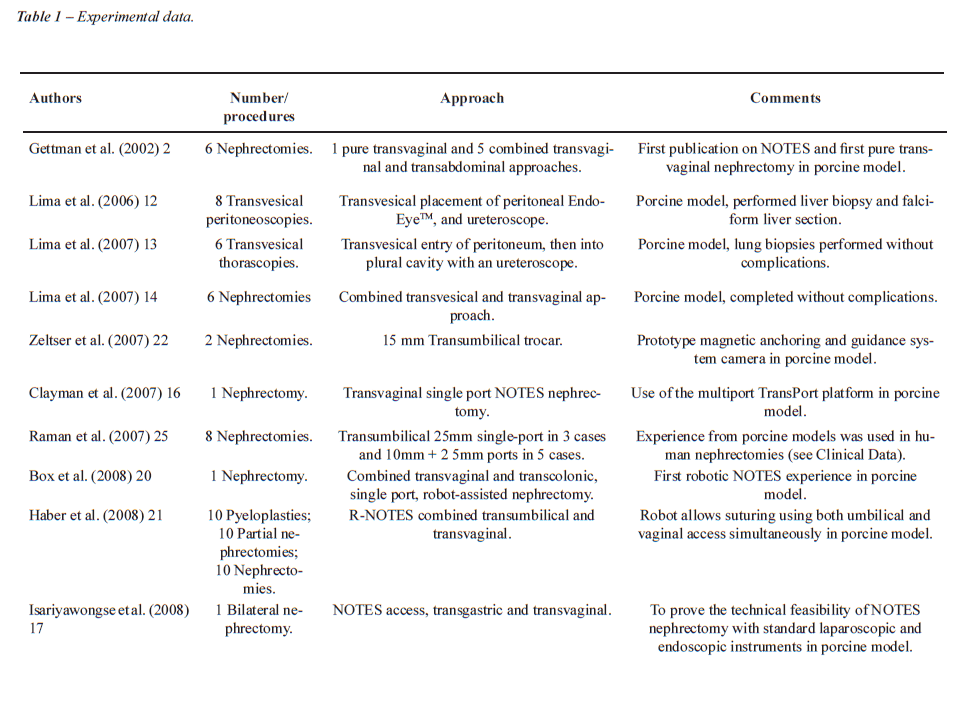

Laboratory (Table-1)

     The initial experience in urologic minimal access surgery came in 2002, when Gettman et al. performed transvaginal laparoscopic dissection and nephrectomy in 6 porcine models (2). They acknowledged the limitations imposed by both the porcine anatomy and available laparoscopic instruments at the time.
     Lima et al. have presented several experiences in pig models were they have described transvesical access (12), and transvesical transdiaphragmatic endoscopic thoracoscopy (13). Lima et al. have also presented a combined approach in the experimental setting, in which they installed a transvesical tube into the peritoneal cavity under cystoscopic guidance; and a flexible gastroscope was passed orally, then into the peritoneal cavity via a gastrotomy. They performed 6 nephrectomies with instruments introduced by both approaches (14). Crouzet et al. described transgastric and transvaginal renal cryoablations in a porcine model, accomplished without complications (15). Several approaches have been described for NOTES-LESS nephrectomy, including transvaginal hybrid NOTES nephrectomy in a porcine model (16,17), pure NOTES transvaginal technique (18) and NOTES nephrectomy using magnetic anchoring and guidance system instrumentation (19).
     Robotic assistance has been introduced to facilitate NOTES procedures using the da Vinci robotic interface. Box et al. performed robotic-assisted hybrid NOTES renal surgery, completing a right nephrectomy. They utilized transvaginal and transcolonic ports for the robotic arms, and a transumbilical port for the camera. While this approach avoided camera/instrument conflict, the authors noted significant instrument/instrument conflict due to inability to separate the ports by greater than 7.5 cm (20). Haber et al. reported on their experience with robot-assisted transvaginal hybrid NOTES, which enabled them to completed pyeloplasties, nephrectomies and partial nephrectomies in porcine models. They acknowledged success with both ablative and reconstructive procedures, noting that the wristed robotic instruments and 3D vision made intracorporeal suturing possible, and that the robotic platform allowed the surgeon to operate through ports that are too widely separated to allow a single surgeon to manipulate them simultaneously (21).
     While the majority of laboratory research in NOTES-LESS has focused on NOTES applications, significant experimental experience has also been gained in LESS. A research group was formed to build a prototype system of magnetically anchored instruments for trocar-free laparoscopy. The system was then evaluated in vivo in a porcine laparoscopic nephrectomy model with promising results (22). A novel approach to the robot-assisted LESS radical prostatectomy was completed by Desai et al. in 2 human cadavers, utilizing a transvesical approach. Again, articulated robotic instruments facilitated the complex motions need for vesico-urethral anastomosis and bladder closure (23). An interesting work of radical prostatectomy performed transvesically has been presented in a cadaver model. The entire resection was performed with the laser and a rigid offset 27F nephroscope was used to perform the vesicourethral anastomosis using a laparoscopic suture device and knot pusher in an interrupted fashion (24).




Bridging Studies

     Surgeons have taken their experimentally gained experience in LESS, and then applied it clinically, reporting both experiences simultaneously. Raman and colleagues presented single keyhole nephrectomy in a porcine model, followed by the same procedure in three human patients (25). Barret et al. described a robot-assisted LESS radical prostatectomy completed in a cadaveric model, and the technique was then transitioned to a human patient. The team used standard laparoscopic ports gathered at a single umbilical incision. Despite some instrument clashing that made exchanging robotic instruments difficult, they reported good results with an operative time of 150 minutes (26).

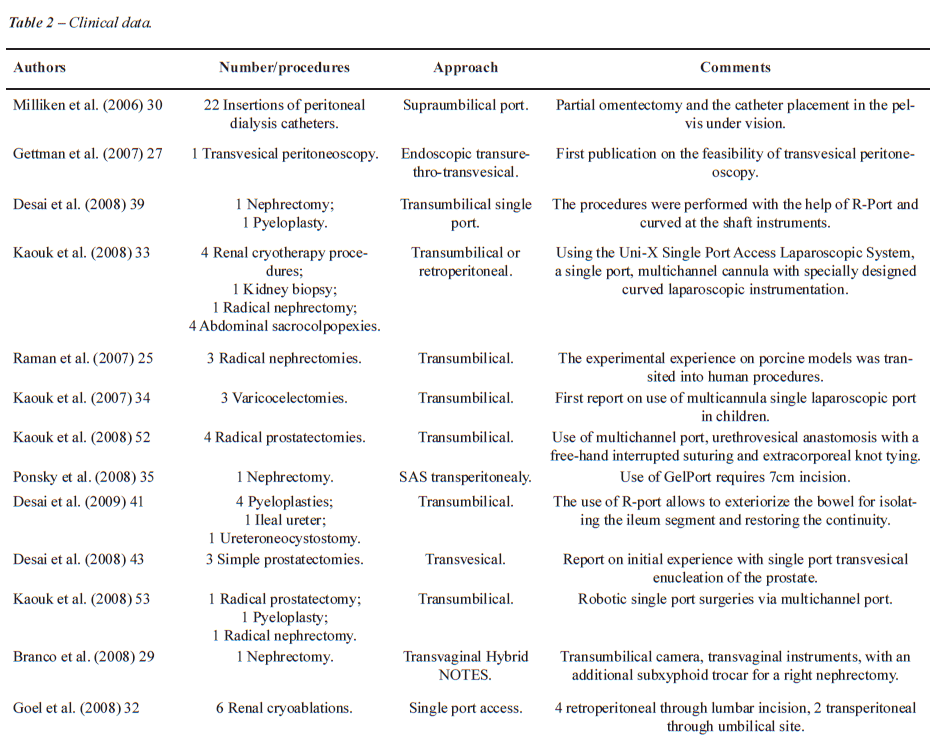

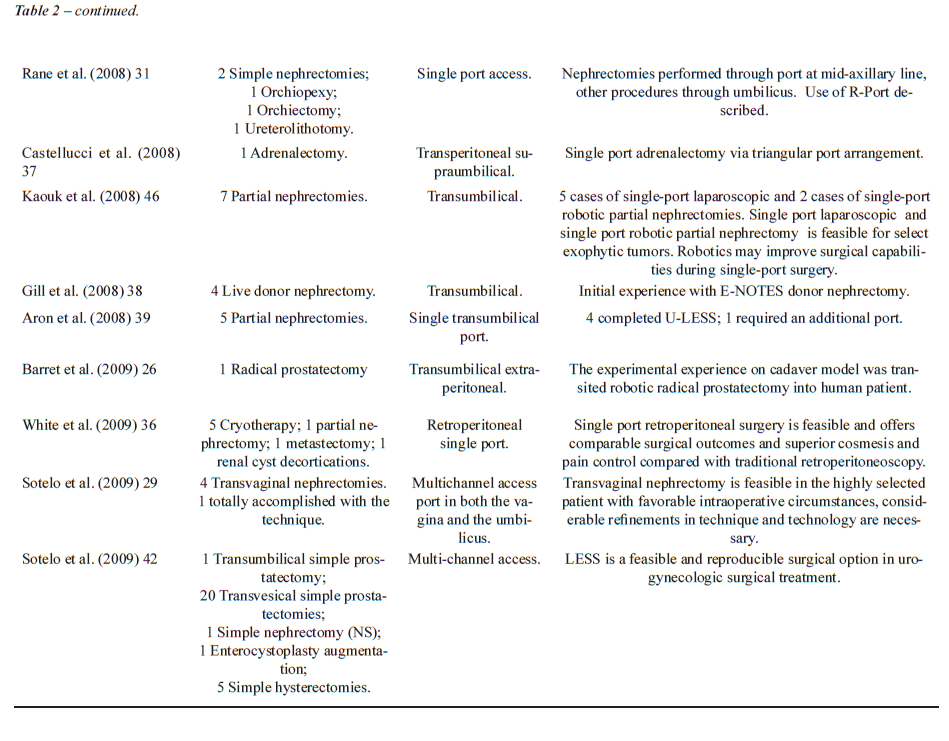

Clinical (Table-2)

     Clinically, NOTES experience has been much more limited than LESS. Gettman et al. performed transvesical peritoneoscopy using a flexible ureteroscope in a patient who subsequently underwent standard robotic-assisted laparoscopic prostatectomy. The cystotomy was performed via a cystoscope, but with guidance from the previously established laparoscopic instruments. This experience represents the first published clinical experience in urologic NOTES (27).
     Branco et al. published a report of a hybrid NOTES simple nephrectomy, in which an endoscope was placed through the posterior vaginal cul-de-sac, along with 5 mm ports at the umbilicus and below the xiphod. The specimen was extracted through the vaginal incision. The authors noted difficulty grasping intra-abdominal organs with endoscopic instruments; as well as problems with lateral viewing using the endoscope, necessitating the use of a 5 mm 30o scope during portions of the case (28). Recently, transvaginal nephrectomy was reassessed by Sotelo et al. with a hybrid approach (29).
     In contrast to NOTES, clinical experience with LESS is more extensively published. There are reports on peritoneal dialysis catheter placement using a single umbilical port in pediatric patients (30), simple nephrectomy, orchiopexy, orchiectomy and ureterolithotomy (31). The Cleveland Clinic ( formally known as the Cleveland Clinic Foundation) has extensively presented their experience with LESS-NOTES. Kaouk et al. presented a clinical series of ten patients operated by single-port technique for different urological procedures (32). Their early results show feasibility along with good outcomes. This institution has also reported on LESS renal cryotherapies (33), and varicocelectomy (34).
The radical nephrectomy technique with single port surgery has also been assessed by Ponsky and coworkers (35). This experience was undertaken in a patient with an enhancing renal tumor. The technique featured three trocars through a GelPort device and the use of only standard laparoscopic instruments. Renal surgery for different procedures has also been evaluated in retroperitoneal single port access (36).
     Additional extirpative surgeries have been accomplished using LESS. Castellucci et al. have reported details of a LESS adrenalectomy (37). Gill et al. performed LESS left donor nephrectomies (38).
Reconstructive procedures add new dimensions of complexity to LESS procedures. Aron et al. reported five single-port partial nephrectomies; of which only one required an additional 5 mm port (39). Desai et al. presented transumbilical nephrectomy and pyeloplasty using the R-Port; 2 mm needle-ports were used in these cases as well. Procedures were successfully accomplished with no extra-umbilical skin incisions and adequate results (40). Desai et al. used LESS to complete bilateral pyeloplasties, ileal ureteral interposition, and psoas hitch ureteroneocystostomy (41). Sotelo et al. have presented a series of NOTES-LESS procedures including enterocystoplasty augmentation (42).
     Pelvic surgery involving reconstruction has also been accomplished. Desai et al. completed transvesical LESS simple prostatectomies utilizing an R-port placed through the bladder dome (43). Kaouk et al. completed LESS radical prostatectomies using a Uni-X port at the umbilicus, and flexible shaft laparoscopic instruments. After dividing the bladder neck, the surgical team found it difficult to maintain adequate traction to dissect the seminal vesicles; therefore they proceeded to the apical dissection and completed the surgery in a retrograde manner. Anastomotic sutures were tied extracorporeally. There were no intra operative complications; however, one patient developed a recto-urethral fistula 2 months postoperatively (44).
     Similar to the experimental experience, robotic technology has been used to augment clinical LESS procedures. Kaouk et al. completed a radical prostatectomy, a dismembered pyeloplasty, and a radical nephrectomy via LESS placement of da Vinci robotic instruments (45). The procedures were completed without additional ports or instruments, and no complications were reported. There is also a report of a series of robotic LESS partial nephrectomies (46).


Comparative Studies

     Raman et al. performed a retrospective case-controlled study comparing the outcomes of 11 LESS nephrectomies to 22 matched, conventional laparoscopic nephrectomies. LESS nephrectomies were shown to be feasible, with comparable interoperative times, blood loss and complication rates; the study failed to demonstrate any significant improvement in analgesic use or convalescence (47). While this study is retrospective, it represents an important step in validating LESS procedures in comparison to standard approaches.

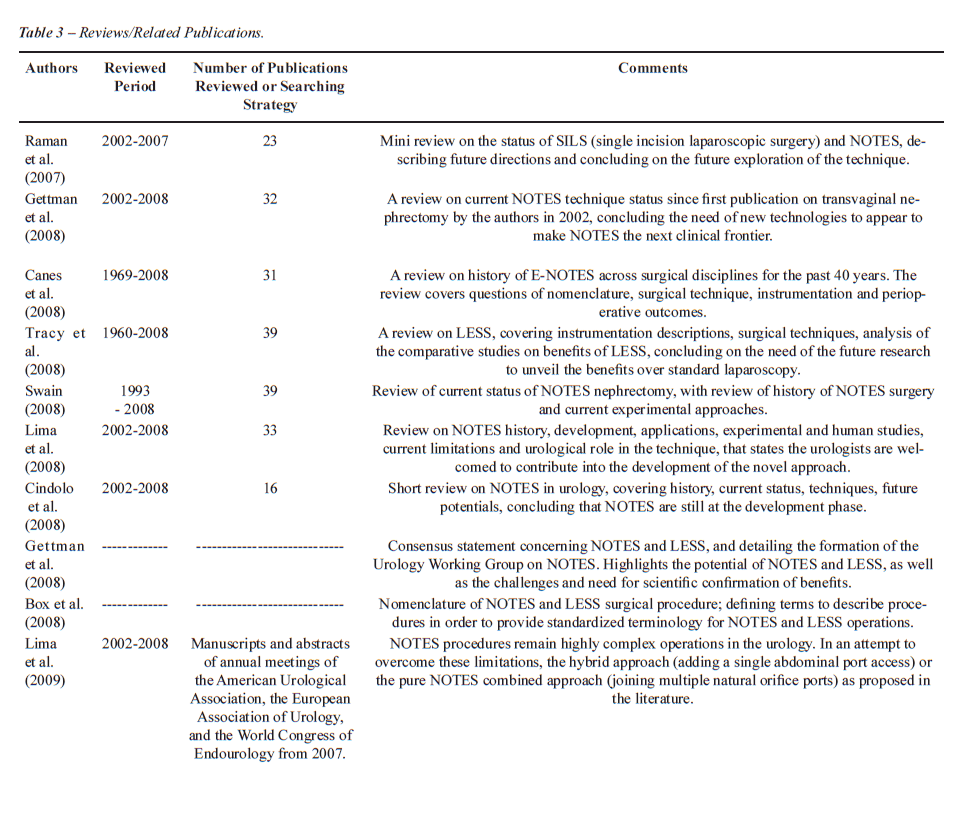

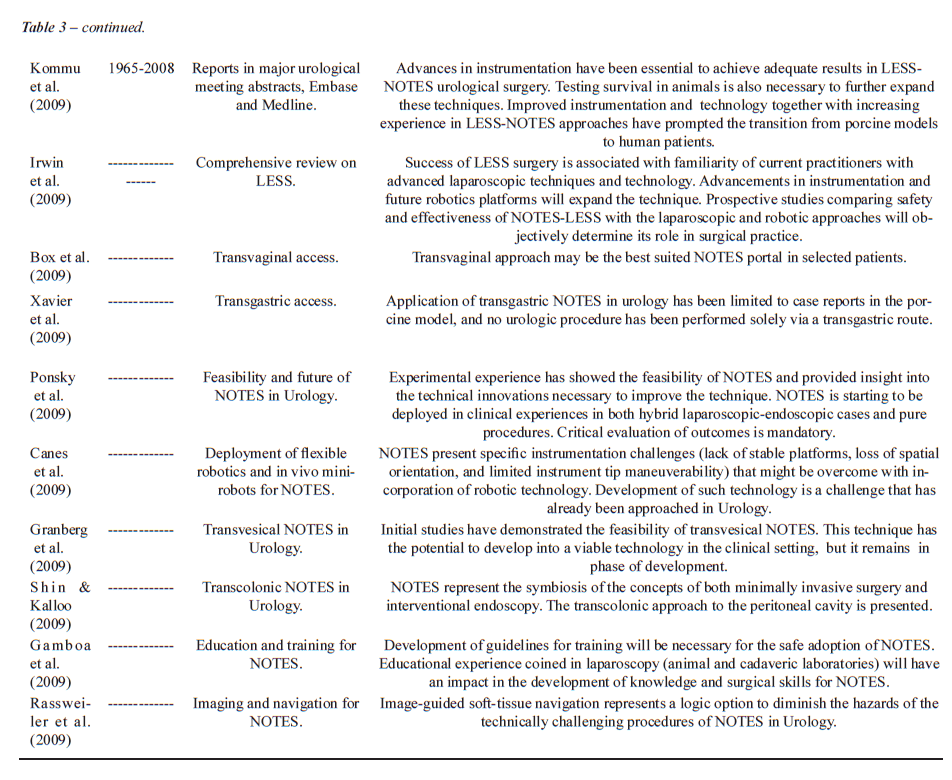

NOTES-LESS Reviews, Nomenclature, Consensus Papers (Table-3)

     Outside of the realm of original research, the increasing enthusiasm for NOTES-LESS has been reflected in a growing body of articles, which summarize and review the details of this topic. This has included a number of review articles, often written by individuals actively participating in NOTES-LESS research. Our search revealed 20 review articles addressing current status and future development of NOTES-LESS techniques (48-65). Additionally, a Urology Working Group on NOTES was formed in November 2007, and subsequently generated a consensus statement on NOTES-LESS. In this statement, they expressed enthusiasm for the future of NOTES and LESS, but recognized that NOTES remains a research topic in need of further development before widespread clinical application (66). The Urologic Working Group on NOTES also observed the plethora of names and acronyms relating to NOTES-LESS; in order to clarify and standardize the language describing these techniques, they published and article defining NOTES-LESS, and provided a framework for standard language to describe these procedures (67).




FUTURE ENDEAVORS

     When Gettman et al. performed the first NOTES procedure, he noted the difficulty of the procedure given the limits of the available instruments (2). This has been a recurring theme in the NOTES-LESS literature that has followed: lack of mobility demands highly developed laparoscopic skills to overcome. In order to broadly apply these techniques, new instruments specially suited to these procedures will likely need to be developed. Curved or articulating instruments, streamlined or flexible optics, and robotic assistance have all been applied toward this end. On the horizon, novel devices such as flexible robotics may bring us closer to the wide application of NOTES-LESS.
     Creating these new devices, and the new approaches to utilize them, will require open, inquisitive minds to constantly rethink the problems and imagine solutions. Urologists are uniquely suited to this task. Urologists are already well versed in laparoscopic, endoscopic and radiologic modalities that will likely be needed to perform minimal access procedures. The specialty also has a “pioneering spirit” that readily embraces new and innovative techniques (66). Along with open minds, there is also the need for healthy scientific skepticism. NOTES- LESS cannot be embraced simply because they are new. They must be carefully validated, both experimentally and clinically, focusing on patient safety and an evidence-based assessment of the benefits of these approaches. The future needs of NOTES-LESS are specific studies to evaluate the technique. At this point, we probably do not need more feasibility studies and the work should be focused primarily in improving and refining techniques, in order to proceed with comparison. The prospect of a randomized prospective study seems far away, but the idea should be kept in mind, even if it seems unlikely to ever happened, as we all have seen in the fields of laparoscopic adrenalectomy and laparoscopic radical prostatectomy. Meantime, solid reports of complications should be incorporated in the clinical work as limited information is available at this point (Table-4); in order to clearly define limitations and potential improvement of outcomes and also very important to consider the need for surgical certification to perform this approaches.


CONCLUSIONS

     NOTES-LESS are novel techniques that hold tremendous promise for delivering safe, effective treatment of urologic disease but they also pose great obstacles. Investigators have applied a great deal of innovation and skill to begin to overcome these challenges. The big part of the NOTES-LESS experience has been performed in renal surgery and this field is probably the most fitted for future development. Further progress will likely rely on novel technologies, as well as innovative minds to imagine and apply them. Finally, NOTES-LESS will need careful validation in comparison to the current standard of care to ensure that they deliver the improved outcomes of which they seem capable.


ACKNOWLEDGEMENT

     To Madame Nicole Lafitte for her valuable day-to-day assistance and cooperation.


CONFLICT OF INTEREST

     None declared.


REFERENCES

  1. Pearl JP, Ponsky JL: Natural orifice translumenal endoscopic surgery: a critical review. J Gastrointest Surg. 2008; 12: 1293-300.
  2. Gettman MT, Lotan Y, Napper CA, Cadeddu JA: Transvaginal laparoscopic nephrectomy: development and feasibility in the porcine model. Urology. 2002; 59: 446-50.
  3. Kalloo AN: Is STAT (self-approximating translumenal access technique) the first step for NOTES? Gastrointest Endosc. 2007; 66: 979-80.
  4. Box G, Averch T, Cadeddu J, Cherullo E, Clayman R, Desai M, et al.: Nomenclature of natural orifice translumenal endoscopic surgery (NOTES) and laparoendoscopic single-site surgery (LESS) procedures in urology. J Endourol. 2008; 22: 2575-81.
  5. Rane A,KommuS, Eddy B, Bonadio F, Rao P, Rao P: Clinical evaluation of a novel laparoscopic port (R-port) and evolution of the single laparoscopic port procedure (SLiPP). J Endourol 2007; 21(Suppl 1): A22-3.
  6. Zhu JF: Scarless endoscopic surgery: NOTES or TUES. Surg Endosc. 2007; 21: 1898-9.
  7. Giday SA, Kantsevoy SV, Kalloo AN: Current status of natural orifice translumenal surgery. Gastrointest Endosc Clin N Am. 2007; 17: 595-604.
  8. McGee MF, Schomisch SJ, Marks JM, Delaney CP, Jin J, Williams C, et al.: Late phase TNF-alpha depression in natural orifice translumenal endoscopic surgery (NOTES) peritoneoscopy. Surgery. 2008; 143: 318-28.
  9. Schäfer M, Lauper M, Krähenbühl L: Trocar and Veress needle injuries during laparoscopy. Surg Endosc. 2001; 15: 275-80.
  10. Clayman RV, Kavoussi LR, Soper NJ, Dierks SM, Meretyk S, Darcy MD, et al.: Laparoscopic nephrectomy: initial case report. J Urol. 1991; 146: 278-82.
  11. Wagh MS, Thompson CC: Surgery insight: natural orifice transluminal endoscopic surgery--an analysis of work to date. Nat Clin Pract Gastroenterol Hepatol. 2007; 4: 386-92.
  12. Lima E, Rolanda C, Pêgo JM, Henriques-Coelho T, Silva D, Carvalho JL, et al.: Transvesical endoscopic peritoneoscopy: a novel 5 mm port for intra-abdominal scarless surgery. J Urol. 2006; 176: 802-5.
  13. Lima E, Henriques-Coelho T, Rolanda C, Pêgo JM, Silva D, Carvalho JL, et al.: Transvesical thoracoscopy: a natural orifice translumenal endoscopic approach for thoracic surgery. Surg Endosc. 2007; 21: 854-8.
  14. Lima E, Rolanda C, Pêgo JM, Henriques-Coelho T, Silva D, Osório L, et al.: Third-generation nephrectomy by natural orifice transluminal endoscopic surgery. J Urol. 2007; 178: 2648-54.
  15. Crouzet S, Haber GP, Kamoi K, Berger A, Brethauer S, Gatmaitan P, et al.: Natural orifice translumenal endoscopic surgery (NOTES) renal cryoablation in a porcine model. BJU Int. 2008; 102: 1715-8.
  16. Clayman RV, Box GN, Abraham JB, Lee HJ, Deane LA, Sargent ER, et al.: Rapid communication: transvaginal single-port NOTES nephrectomy: initial laboratory experience. J Endourol. 2007; 21: 640-4.
  17. Isariyawongse JP, McGee MF, Rosen MJ, Cherullo EE, Ponsky LE: Pure natural orifice transluminal endoscopic surgery (NOTES) nephrectomy using standard laparoscopic instruments in the porcine model. J Endourol. 2008; 22: 1087-91.
  18. Haber GP, Brethauer S, Crouzet S, Berger A, Gatmaitan P, Kamoi K, et al.: Pure ‘natural orifice transluminal endoscopic surgery’ for transvaginal nephrectomy in the porcine model. BJU Int. 2009; 104: 1260-4.
  19. Raman JD, Bergs RA, Fernandez R, Bagrodia A, Scott DJ, Tang SJ, et al.: Complete transvaginal NOTES nephrectomy using magnetically anchored instrumentation. J Endourol. 2009; 23: 367-71.
  20. Box GN, Lee HJ, Santos RJ, Abraham JB, Louie MK, Gamboa AJ, et al.: Rapid communication: robot-assisted NOTES nephrectomy: initial report. J Endourol. 2008; 22: 503-6.
  21. Haber GP, Crouzet S, Kamoi K, Berger A, Aron M, Goel R, et al.: Robotic NOTES (Natural Orifice Translumenal Endoscopic Surgery) in reconstructive urology: initial laboratory experience. Urology. 2008; 71: 996-1000.
  22. Zeltser IS, Bergs R, Fernandez R, Baker L, Eberhart R, Cadeddu JA: Single trocar laparoscopic nephrectomy using magnetic anchoring and guidance system in the porcine model. J Urol. 2007; 178: 288-91.
  23. Desai MM, Aron M, Berger A, Canes D, Stein R, Haber GP, et al.: Transvesical robotic radical prostatectomy. BJU Int. 2008; 102: 1666-9.
  24. Humphreys MR, Krambeck AE, Andrews PE, Castle EP, Lingeman JE: Natural orifice translumenal endoscopic surgical radical prostatectomy: proof of concept. J Endourol. 2009; 23: 669-75.
  25. Raman JD, Bensalah K, Bagrodia A, Stern JM, Cadeddu JA: Laboratory and clinical development of single keyhole umbilical nephrectomy. Urology. 2007; 70: 1039-42.
  26. Barret E, Sanchez-Salas R, Kasraeian A, Benoist N, Ganatra A, Cathelineau X, et al.: A transition to laparoendoscopic single-site surgery (LESS) radical prostatectomy: human cadaver experimental and initial clinical experience. J Endourol. 2009; 23: 135-40.
  27. Gettman MT, Blute ML: Transvesical peritoneoscopy: initial clinical evaluation of the bladder as a portal for natural orifice translumenal endoscopic surgery. Mayo Clin Proc. 2007; 82: 843-5.
  28. Branco AW, Branco Filho AJ, Kondo W, Noda RW, Kawahara N, Camargo AA, et al.: Hybrid transvaginal nephrectomy. Eur Urol. 2008; 53: 1290-4.
  29. Sotelo R, de Andrade R, Fernández G, Ramirez D, Di Grazia E, Carmona O, et al.: NOTES Hybrid Transvaginal Radical Nephrectomy for Tumor: Stepwise Progression Toward a First Successful Clinical Case. Eur Urol. 2009; 22. [Epub ahead of print].
  30. Milliken I, Fitzpatrick M, Subramaniam R: Single-port laparoscopic insertion of peritoneal dialysis catheters in children. J Pediatr Urol. 2006; 2: 308-11.
  31. Rané A, Rao P, Rao P: Single-port-access nephrectomy and other laparoscopic urologic procedures using a novel laparoscopic port (R-port). Urology. 2008; 72: 260-3; discussion 263-4.
  32. Kaouk JH, Haber GP, Goel RK, Desai MM, Aron M, Rackley RR, et al.: Single-port laparoscopic surgery in urology: initial experience. Urology. 2008; 71: 3-6.
  33. Goel RK, Kaouk JH: Single port access renal cryoablation (SPARC): a new approach. Eur Urol. 2008; 53: 1204-9.
  34. Kaouk JH, Palmer JS: Single-port laparoscopic surgery: initial experience in children for varicocelectomy. BJU Int. 2008; 102: 97-9.
  35. Ponsky LE, Cherullo EE, Sawyer M, Hartke D: Single access site laparoscopic radical nephrectomy: initial clinical experience. J Endourol. 2008; 22: 663-6.
  36. White WM, Goel RK, Kaouk JH: Single-port laparoscopic retroperitoneal surgery: initial operative experience and comparative outcomes. Urology. 2009; 73: 1279-82.
  37. Castellucci SA, Curcillo PG, Ginsberg PC, Saba SC, Jaffe JS, Harmon JD: Single port access adrenalectomy. J Endourol. 2008; 22: 1573-6.
  38. Gill IS, Canes D, Aron M, Haber GP, Goldfarb DA, Flechner S, et al.: Single port transumbilical (E-NOTES) donor nephrectomy. J Urol. 2008; 180: 637-41; discussion 641.
  39. Aron M, Canes D, Desai MM, Haber GP, Kaouk JH, Gill IS: Transumbilical single-port laparoscopic partial nephrectomy. BJU Int. 2009; 103: 516-21.
  40. Desai MM, Rao PP, Aron M, Pascal-Haber G, Desai MR, Mishra S, et al.: Scarless single port transumbilical nephrectomy and pyeloplasty: first clinical report. BJU Int. 2008; 101: 83-8.
  41. Desai MM, Stein R, Rao P, Canes D, Aron M, Rao PP, et al.: Embryonic natural orifice transumbilical endoscopic surgery (E-NOTES) for advanced reconstruction: initial experience. Urology. 2009; 73: 182-7.
  42. Sotelo R, Astigueta JC, Carmona O, De Andrade R, Sanchez-Salas R: Laparo-endoscopic single site (LESS). Actas Urol Esp. 2009; 33: 172-81; discussion 110-2.
  43. Desai MM, Aron M, Canes D, Fareed K, Carmona O, Haber GP, et al.: Single-port transvesical simple prostatectomy: initial clinical report. Urology. 2008; 72: 960-5.
  44. Kaouk JH, Goel RK, Haber GP, Crouzet S, Desai MM, Gill IS: Single-port laparoscopic radical prostatectomy. Urology. 2008; 72: 1190-3.
  45. Kaouk JH, Goel RK, Haber GP, Crouzet S, Stein RJ: Robotic single-port transumbilical surgery in humans: initial report. BJU Int. 2009; 103: 366-9.
  46. Kaouk JH, Goel RK: Single-port laparoscopic and robotic partial nephrectomy. Eur Urol. 2009; 55: 1163-9.
  47. Raman JD, Bagrodia A, Cadeddu JA: Single-incision, umbilical laparoscopic versus conventional laparoscopic nephrectomy: a comparison of perioperative outcomes and short-term measures of convalescence. Eur Urol. 2009; 55: 1198-204.
  48. Swain P: Nephrectomy and natural orifice translumenal endoscopy (NOTES): transvaginal, transgastric, transrectal, and transvesical approaches. J Endourol. 2008; 22: 811-8.
  49. Lima E, Rolanda C, Correia-Pinto J: Transvesical endoscopic peritoneoscopy: intra-abdominal scarless surgery for urologic applications. Curr Urol Rep. 2008; 9: 50-4.
  50. Cindolo L, Gidaro S, Schips L: Urological applications of N.O.T.E.S. Surg Oncol. 2009; 18: 153-6.
  51. Gettman MT, Cadeddu JA: Natural orifice translumenal endoscopic surgery (NOTES) in urology: initial experience. J Endourol. 2008; 22: 783-8.
  52. Tracy CR, Raman JD, Cadeddu JA, Rane A: Laparoendoscopic single-site surgery in urology: where have we been and where are we heading? Nat Clin Pract Urol. 2008; 5: 561-8.
  53. Canes D, Desai MM, Aron M, Haber GP, Goel RK, Stein RJ, et al.: Transumbilical single-port surgery: evolution and current status. Eur Urol. 2008; 54: 1020-9.
  54. Raman JD, Cadeddu JA, Rao P, Rane A: Single-incision laparoscopic surgery: initial urological experience and comparison with natural-orifice transluminal endoscopic surgery. BJU Int. 2008; 101: 1493-6.
  55. Lima E, Rolanda C, Correia-Pinto J: NOTES performed using multiple ports of entry: Current experience and potential implications for urologic applications. J Endourol. 2009; 23: 759-64.
  56. Kommu SS, Kaouk JH, Rané A: Laparo-endoscopic single-site surgery: preliminary advances in renal surgery. BJU Int. 2009; 103: 1034-7.
  57. Irwin BH, Rao PP, Stein RJ, Desai MM: Laparoendoscopic single site surgery in urology. Urol Clin North Am. 2009; 36: 223-35.
  58. Box GN, Bessler M, Clayman RV: Transvaginal access: current experience and potential implications for urologic applications. J Endourol. 2009; 23: 753-7.
  59. Xavier K, Gupta M, Landman J: Transgastric NOTES: Current experience and potential implications for urologic applications. J Endourol. 2009; 23: 737-41.
  60. Ponsky LE, Poulose BK, Pearl J, Ponsky JL: Natural orifice translumenal endoscopic surgery: myth or reality? J Endourol. 2009; 23: 733-5.
  61. Canes D, Lehman AC, Farritor SM, Oleynikov D, Desai MM: The future of NOTES instrumentation: Flexible robotics and in vivo minirobots. J Endourol. 2009; 23: 787-92.
  62. Granberg CF, Frank I, Gettman MT: Transvesical NOTES: Current experience and potential implications for urologic applications. J Endourol. 2009; 23: 747-52.
  63. Shin EJ, Kalloo AN: Transcolonic NOTES: Current experience and potential implications for urologic applications. J Endourol. 2009; 23: 743-6.
  64. Gamboa AJ, Box GN, Preminger GM, McDougall EM: NOTES: Education and training. J Endourol. 2009; 23: 813-9.
  65. Rassweiler J, Baumhauer M, Weickert U, Meinzer HP, Teber D, Su LM, et al.: The role of imaging and navigation for natural orifice translumenal endoscopic surgery. J Endourol. 2009; 23: 793-802.
  66. Gettman MT, Box G, Averch T, Cadeddu JA, Cherullo E, Clayman RV, et al.: Consensus statement on natural orifice transluminal endoscopic surgery and single-incision laparoscopic surgery: heralding a new era in urology? Eur Urol. 2008; 53: 1117-20.
  67. Box G, Averch T, Cadeddu J, Cherullo E, Clayman R, Desai M, et al.: Nomenclature of natural orifice translumenal endoscopic surgery (NOTES) and laparoendoscopic single-site surgery (LESS) procedures in urology. J Endourol. 2008; 22: 2575-81.
