PROGNOSTIC FACTORS FOR LATE URINARY TOXICITY GRADE 2-3 AFTER CONFORMAL RADIATION THERAPY ON PATIENTS WITH PROSTATE CANCER
( Download pdf )

RICARDO A. NAKAMURA, CARLOS R. MONTI, LISIAS N. CASTILHO, FELIPE A. TREVISAN, ALEXANDRE C. VALIM, JOSE A. REINATO

Institute Radium of Oncology, Campinas, Sao Paulo, Brazil

ABSTRACT

     Objective: Identify prognostic factors associated to late urinary toxicity in patients with prostate cancer submitted to radical conformal radiotherapy (3DCRT).
     Materials and Methods: From July 1997 to January 2002, 285 patients with localized prostate cancer were consecutively treated with 3DCRT and retrospectively analyzed. Thirty seven (13%) patients were submitted to transurethral prostate resection previously to 3DCRT. The median dose delivered to the prostate was 7920 cGy (7020-8460). Patient and treatment characteristics were analyzed and correlated to late urinary toxicity grade 2-3, especially whether certain radiation doses applied to certain bladder volumes, when visualized through computerized tomography (CT) planning, correlated with the observed actuarial incidences of late urinary complications, using bladder volume as a continuous variable.

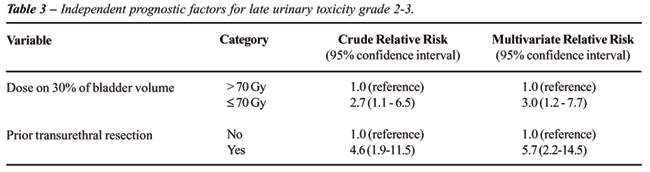

     Results: On a median follow-up of 53.6 months (3.6-95.3), the 5-year actuarial free from late urinary toxicity grade 2-3 survival was 91.1%. Seven and fifteen patients presented late urinary toxicity grades 2 and 3, respectively. Prior transurethral resection of prostate and radiation dose over 70 Gy on 30% of initial bladder volume were independent prognostic factors for late urinary toxicity grade 2-3.
     Conclusions: This study suggests that restricting radiation doses to 70 Gy or less on 30% of bladder volume, visualized through CT planning, may reduce late urinary complications. It furthermore suggests that patients with prior transurethral resection of prostate may indicate a group of patients with a greater risk for late urinary toxicity grade 2-3 after 3DCRT.

Key words: prostatic neoplasms; radiotherapy; bladder; toxicity; prognosis
Int Braz J Urol. 2007; 33: 652-61

INTRODUCTION

     Several studies have reported that higher radiation doses improve the control over prostate cancer (1-4). However, by increasing the radiation dose, the risk of developing complications also increases (1,5). Many studies have observed that the incidence of rectal complications is not exclusively associated to the radiation dose, but also to the volume of organ irradiated (2,6,7). Grade 2 or higher late urinary complications occur in 10-13% of patients treated with radiotherapy, but the relation between radiation dose and irradiated bladder volume (dose-volume relation) has not been well documented (2,3,5,8,9). The purpose of this study is to find out the parameters of this dose-volume relation by means of the initial CT planning, as well as factors inherent to the patients that might reduce the rate of late urinary complications.

MATERIALS AND METHODS

     Patients - From July 1997 to January 2002, 285 patients with localized prostate cancer were consecutively treated with 3DCRT on a single institution and they were retrospectively analyzed. All patients were staged according to the 2002 American Joint Committee on Cancer. All patients gave written consent prior to treatment. The median age was 70 years (47-86) and 142 (49.8%) patients had associated diseases. Thirty seven (13%) patients were submitted to prior transurethral resection of prostate due to benign prostatic hypertrophy related symptoms. The median prostate weight estimated by transrectal ultrasound previously to 3DCRT was 35 g (11-123). Urinary symptoms before 3DCRT application were not available on medical records.
     Treatment characteristics - Neoadjuvant, concomitant and adjuvant androgen suppression were done by discretion of the urologist or the radiation oncologist. On supine position, patients were submitted to urethrography during three-dimensional simulation and 5 mm tomographic slices were obtained. The images were transferred to workstations and the treatment targets, as well as organs at risk, were delineated. The prostate was delineated in all its volume, including the prostate capsule. Regional lymphatic drainage was considered the external and internal iliac vessels drainage, beginning at the caudal portion of the sacroiliac junction, and the obturatory vessels, excluding the perirectal vessels. For movement margins and setup errors, 10 mm were given in all dimensions, except for the seminal vesicles and prostate, which were given only a 3 mm posterior margin. Organs at risk were delineated as follows: a) bladder: delineation of the whole bladder, including its most external layer, b) rectum: delineation of the whole rectum, including contents from the anal-rectum transition to the rectum-sigmoid transition. Energies of 6 or 15 MeV of photons and 5 fields of radiation were used. The radiotherapy planning was divided into phases: pelvis, seminal vesicles and prostate were irradiated in the first phase; in the second phase, the seminal vesicles and prostate were the target volumes; in the last phase, only the prostate was irradiated. Whenever pelvic irradiation was not done, treatment included only the two latter phases: irradiation of the seminal vesicles and prostate, followed by irradiation of the prostate only. After radiotherapy planning was completed, it was then transferred to the linear accelerator and therapy was done with 180 cGy per day, 5 days per week. The patients have been advised to have a full bladder before treatment planning and the daily treatment. 3DCRT on the pelvis and on the seminal vesicles was performed in 50 (17.5%) and 245 (86%) patients, respectively. Neoadjuvant and concomitant androgen suppression therapy were performed in 123 (43.2%) and 146 (51.2%) patients, respectively.
     Follow-up - After 3DCRT, patients were followed up between 3 and 6 months with serial PSA and physical examination. Image studies were done when specific complaints occurred.
     Urinary Toxicity - Late urinary toxicity was considered after three months of the end of 3DCRT, and was graded according to Common Terminology Criteria for Adverse Events, version 3 (10), Table-1. Information about patient complaint was obtained by physician interview. Only grade 2 or higher toxicities were considered for analysis. Sexual function was not analyzed. The highest grade of late urinary toxicity was considered for statistical analysis when patients presented more than one type of late urinary toxicity.



     Statistical analysis - Patient and treatment characteristics were analyzed and correlated to late urinary toxicity, especially whether certain radiation doses applied to certain bladder volumes, visualized through CT planning, correlated with the observed actuarial incidences of late urinary complications, using volume as a continuous variable. Associations between categorical variables for frequency data in contingency tables were performed through the chi-square test. When at least one expected frequency in 2 x 2 tables resulted in less than 5, Fisher’s exact test was adopted. The 5% level of significance was considered for all tests. The free from late urinary toxicity grade 2-3 survival was defined as the interval between the date of the beginning of 3DCRT and the date of the first reported urinary complaints or the last information for censored observations. The actuarial free from late urinary toxicity grade 2-3 survival was estimated by the Kaplan-Meier method and the log-rank test was applied to compare survival curves with the confidence interval of 95%. All analyses were performed using the statistical software STATA release 7.0 (StataCorp 2001).

RESULTS

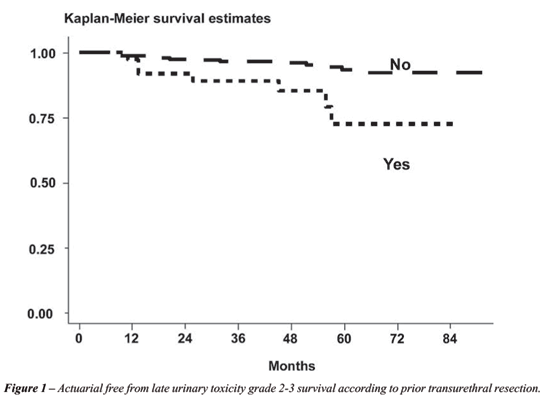

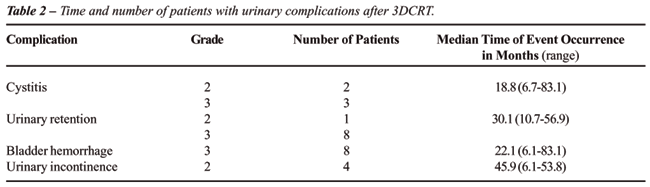

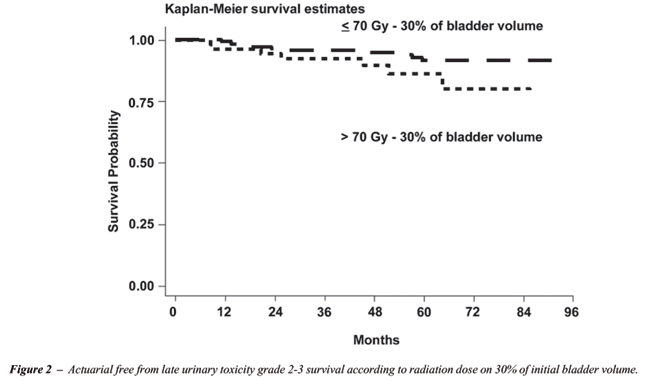

     On a median follow-up of 53.6 months (3.6-95.3), the 5-year actuarial free from late urinary toxicity grade 2-3 survival was 91.1%. The number of patients with late urinary toxicities according to their grade and the median time of event occurrence are listed on Table-2. The 5-year actuarial free from late urinary toxicity grade 2-3 survival for patients with and without prior transurethral resection of prostate was 74.3% and 93.9%, respectively (p = 0.0002) (Figure-1). For patients who received more than 70 Gy to 30% of bladder volume (54 patients), visualized through CT planning, the 5-year actuarial free from late urinary toxicity grade 2-3 survival was 86.4%, versus 92% for patients who received 70 Gy or less to 30% of bladder volume, also visualized through CT planning (p = 0.0264) (Figure-2). Prior transurethral resection of prostate and radiation dose more than 70 Gy to 30% of bladder volume were independent prognostic factors for late urinary toxicity grade 2-3 (Table-3).
Analysis of age, ultrasound-estimated prostate weight, associated diseases, Gleason score, initial PSA value, clinical T stage, neoadjuvant, concomitant or adjuvant androgen suppression, irradiation of the pelvis and of the seminal vesicles were not statistically significant for the 5-year actuarial free from late urinary toxicity grade 2-3 survival.

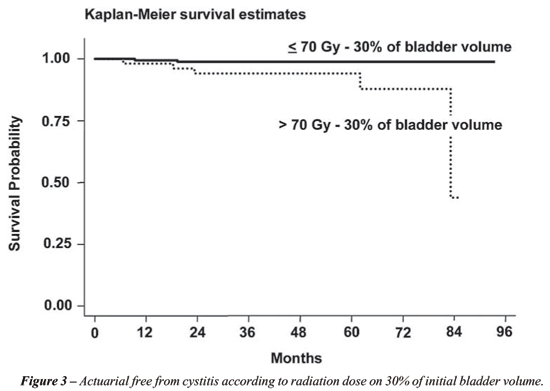

     Analyzing each type of late urinary toxicity grade 2-3 (cystitis, bladder hemorrhage, urinary incontinence and urinary retention) with prior transurethral resection and radiation dose more than 70 Gy to 30% of bladder volume, only patients with cystitis were associated to radiation dose more than 70 Gy to 30% of bladder volume (p = 0.0008) (Figure-3).

COMMENTS

     Various trials did not find any relation between the percentage of bladder volume receiving a certain radiation dose and late urinary toxicity (6,11,12). Kuban et al. (5) postulated that the dose-volume relation is confounded by changes in bladder volume throughout therapy, making it difficult to be evaluated. However, Pinkawa et al. (13) reported that the mean bladder volume can be kept at the same level at the time of the initial treatment planning and during the treatment, if patients are asked to have a full bladder. The M.D. Anderson Cancer Center (6) randomized 189 patients with prostate cancer to receive 70 Gy or 78 Gy. The 5-year Kaplan-Meier risks of Grade 2 or higher late urinary toxicity were 20% and 9% for the 70 Gy and 78 Gy groups, respectively. Late urinary toxicity did not correlate with either the percentage or absolute volume of bladder that received 60 Gy or more, or 70 Gy or more. Koper et al. (11) analyzed 248 patients treated for prostate cancer with radiotherapy in a randomized trial. No association was found between radiation doses applied to certain bladder volumes and late urinary toxicity. However, the total dose of radiation was low (66 Gy on the prostate). Boersma et al. (12) analyzed the radiation dose of certain bladder volumes of 130 patients with prostate cancer treated with 3DCRT in a dose-escalating protocol. The 2-year actuarial incidence of Grade 3 or higher genitourinary complications was 8% and 21% using the RTOG/EORTC and the SOMA/LENT toxicity scales, respectively. They investigated whether the absolute bladder wall volume irradiated by various dose levels of radiation correlated with the actuarial incidence of late bladder complications. Although the crude figures indicated a trend towards higher complication rates with larger irradiated volumes, actuarial analysis did not demonstrate any significant effect. The total radiation dose and the maximum dose applied to the bladder wall did not correlate with the incidence of late bladder complications either. In the first study that found an association between radiation doses applied to certain bladder volumes and low-grade late urinary toxicity, Pinkawa et al. (13) prospectively evaluated the impact of the dose-volume variable in 80 patients with prostate cancer consecutively treated with 3DCRT. The Expanded Prostate Cancer Index Composite (14) was used to grade urinary toxicity. The planned target volume was overlaid by the 90% isodose relative to the ICRU (15) reference point. The total median dose applied to the prostate at the reference point was 70.2 Gy divided into 1.8 Gy daily fractions. It was observed that the initial bladder volume and the percentage of bladder volume receiving 10%-90% of the prescription dose correlated significantly with the urinary function/irritation scales. Bladder volume < 180 mL, planned target volume ≥ 350 mL and area under the dose-volume histogram curve for the bladder ≥ 45% were also prognostic factors for late urinary toxicity. Trying to estimate and to correlate the absolute radiation dose that a percentage of the bladder volume received in this study with low-grade late urinary toxicity, it was found that 25% of bladder volume receiving ≥ 63.2 Gy (90% isodose of 70.2 Gy), 50% of bladder volume receiving ≥ 35.1 Gy (50% isodose of 70.2 Gy) and 65% of bladder volume receiving ≥ 21.1 Gy (30% isodose of 70.2 Gy) resulted in more low-grade late urinary toxicity. The present study used absolute radiation doses applied to a percentage of bladder volume, correlating these variables with late urinary toxicity, because this method is easier to use in clinical practice. It found that more than 70 Gy to 30% of bladder volume, visualized through CT planning, increased the risk of late urinary toxicity grade 2-3 (Figure-2). In medical literature, other factors have been associated to late urinary toxicity after 3DCRT. Peeters et al. (16) analyzed 669 patients with prostate cancer in a randomized trial of dose-escalation therapy. On a median follow-up of 31 months, the 3-year risks of late genitourinary toxicity grade 2 or higher were 28.5% and 30.2% for 68 Gy and 78 Gy, respectively. Androgen suppression therapy, pretreatment genitourinary symptoms and prior transurethral resection of prostate were prognostic factors for late genitourinary grade 2 or higher. Zelefsky et al. (4) analyzed 1100 patients treated with 3DCRT or intensity modulated radiotherapy at Memorial Sloan Kettering Cancer Center and reported a strong relation between radiation dose and late urinary toxicity grade 2. The 5-year actuarial rate of late urinary toxicity grade 2 on patients who received 75.6 Gy or more was 13%, versus 4% on patients who received less than 75.6 Gy (p < 0.001). Liu et al. (17) evaluated 1192 patients with prostate cancer treated with radiotherapy and observed that associated genitourinary disease, transurethral resection of prostate previous to radiotherapy and the presence of acute urinary toxicity during treatment were significant prognostic factors for late urinary toxicity grade 3. In the present study, prior transurethral resection of prostate resulted in more late urinary toxicity grade 2-3 (Figure-1). However, data concerning obstructive urinary symptoms before 3DCRT were not available, making it possible that transurethral resection of prostate has selected patients with a higher tendency to urinary toxicity.

CONCLUSIONS

     Although bladder volume is not constant during treatment with 3DCRT, restriction of the radiation dose to 70 Gy or less to 30% of bladder volume, visualized through CT planning, seems to be a good measure in order to reduce late urinary toxicity grade 2-3, especially when associated to orientations for the patients to maintain their bladders full during radiotherapy application. Likewise, in spite of the possibility that prior transurethral resection of prostate may have selected patients with a higher propensity for urinary toxicity, the existence of prior transurethral resection of prostate may be an alert to the possibility of late urinary complications.

CONFLICT OF INTEREST

     None declared.

REFERENCES

1. Shipley WU, Verhey LJ, Munzenrider JE, Suit HD, Urie MM, McManus PL, et al.: Advanced prostate cancer: the results of a randomized comparative trial of high dose irradiation boosting with conformal protons compared with conventional dose irradiation using photons alone. Int J Radiat Oncol Biol Phys. 1995; 32: 3-12.
2. Pollack A, Zagars GK, Starkschall G, Antolak JA, Lee JJ, Huang E, et al.: Prostate cancer radiation dose response: results of the M. D. Anderson phase III randomized trial. Int J Radiat Oncol Biol Phys. 2002; 53: 1097-105.
3. Zietman AL, DeSilvio ML, Slater JD, Rossi CJ Jr, Miller DW, Adams JA, et al.: Comparison of conventional-dose vs high-dose conformal radiation therapy in clinically localized adenocarcinoma of the prostate: a randomized controlled trial. JAMA. 2005; 294: 1233-9.
4. Zelefsky MJ, Fuks Z, Hunt M, Lee HJ, Lombardi D, Ling CC, et al.: High dose radiation delivered by intensity modulated conformal radiotherapy improves the outcome of localized prostate cancer. J Urol. 2001; 166: 876-81. Erratum in: J Urol 2001; 166: 1839.
5. Kuban D, Pollack A, Huang E, Levy L, Dong L, Starkschall G, et al.: Hazards of dose escalation in prostate cancer radiotherapy. Int J Radiat Oncol Biol Phys. 2003; 57: 1260-8.
6. Storey MR, Pollack A, Zagars G, Smith L, Antolak J, Rosen I: Complications from radiotherapy dose escalation in prostate cancer: preliminary results of a randomized trial. Int J Radiat Oncol Biol Phys. 2000; 48: 635-42.
7. Huang EH, Pollack A, Levy L, Starkschall G, Dong L, Rosen I, et al.: Late rectal toxicity: dose-volume effects of conformal radiotherapy for prostate cancer. Int J Radiat Oncol Biol Phys. 2002; 54: 1314-21.
8. Zelefsky MJ, Fuks Z, Hunt M, Yamada Y, Marion C, Ling CC, et al.: High-dose intensity modulated radiation therapy for prostate cancer: early toxicity and biochemical outcome in 772 patients. Int J Radiat Oncol Biol Phys. 2002; 53: 1111-6.
9. Lebesque JV, Bruce AM, Kroes AP, Touw A, Shouman RT, van Herk M: Variation in volumes, dose-volume histograms, and estimated normal tissue complication probabilities of rectum and bladder during conformal radiotherapy of T3 prostate cancer. Int J Radiat Oncol Biol Phys. 1995; 33: 1109-19.
10. Common Terminology Criteria for Adverse Events v3.0 (CTCAE) http://ctep.cancer.gov/forms/CTCAEv3.pdf (accessed on 09/June/2005)
11. Koper PC, Jansen P, van Putten W, van Os M, Wijnmaalen AJ, Lebesque JV, et al.: Gastro-intestinal and genito-urinary morbidity after 3D conformal radiotherapy of prostate cancer: observations of a randomized trial. Radiother Oncol. 2004; 73: 1-9.
12. Boersma LJ, van den Brink M, Bruce AM, Shouman T, Gras L, te Velde A, et al.: Estimation of the incidence of late bladder and rectum complications after high-dose (70-78 GY) conformal radiotherapy for prostate cancer, using dose-volume histograms. Int J Radiat Oncol Biol Phys. 1998; 41: 83-92.
13. Pinkawa M, Fischedick K, Asadpour B, Gagel B, Piroth MD, Eble MJ: Low-grade toxicity after conformal radiation therapy for prostate cancer—impact of bladder volume. Int J Radiat Oncol Biol Phys. 2006; 64: 835-41.
14. Wei JT, Dunn RL, Litwin MS, Sandler HM, Sanda MG: Development and validation of the expanded prostate cancer index composite (EPIC) for comprehensive assessment of health-related quality of life in men with prostate cancer. Urology. 2000; 56: 899-905.
15. ICRU report 50: Prescribing, recording and reporting photon beam therapy. ICRU. 1993.
16. Peeters ST, Heemsbergen WD, van Putten WL, Slot A, Tabak H, Mens JW, et al.: Acute and late complications after radiotherapy for prostate cancer: results of a multicenter randomized trial comparing 68 Gy to 78 Gy. Int J Radiat Oncol Biol Phys. 2005; 61: 1019-34.
17. Liu M, Pickles T, Agranovich A, Berthelet E, Duncan G, Keyes M, et al.: Impact of neoadjuvant androgen ablation and other factors on late toxicity after external beam prostate radiotherapy. Int J Radiat Oncol Biol Phys. 2004; 58: 59-67.

____________________
Accepted after revision:
December 30, 2006

_______________________
Correspondence address:
Dr. Ricardo Akiyoshi Nakamura
Av. Heitor Penteado, 1780, Taquaral
Campinas, São Paulo, 13075-460, Brazil
Fax: + 55 19 3753-4166
E-mail: ricardonakamura1@gmail.com

1. Pinkawa M, Asadpour B, Gagel B, Piroth MD, Holy R, Eble MJ: Prostate position variability and dose-volume-histograms in radiotherapy for prostate cancer with full and empty bladder. Int J Radiat Oncol Biol Phys. 2006; 64: 856-61.
2. Pinkawa M, Asadpour B, Siluschek J, Gagel B, Piroth MD, Demirel C, et al.: Bladder extension variability during pelvic external beam radiotherapy with a full or empty bladder. Radiother Oncol. 2007; 83: 163-7.
3. Zellars RC, Roberson PL, Strawderman M, Zhang D, Sandler HM, Ten Haken RK, et al.: Prostate position late in the course of external beam therapy: patterns and predictors. Int J Radiat Oncol Biol Phys. 2000; 47: 655-60.
4. O’Doherty UM, McNair HA, Norman AR, Miles E, Hooper S, Davies M, et al.: Variability of bladder filling in patients receiving radical radiotherapy to the prostate. Radiother Oncol. 2006; 79: 335-40.
5. Zelefsky MJ, Crean D, Mageras GS, Lyass O, Happersett L, Ling CC, et al.: Quantification and predictors of prostate position variability in 50 patients evaluated with multiple CT scans during conformal radiotherapy. Radiother Oncol. 1999; 50: 225-34.
6. Pinkawa M, Fischedick K, Asadpour B, Gagel B, Piroth MD, Eble MJ: Low-grade toxicity after conformal radiation therapy for prostate cancer - impact of bladder volume. Int J Radiat Oncol Biol Phys. 2006; 64: 835-41.
7. Pinkawa M, Fischedick K, Asadpour B, Gagel B, Piroth MD, Nussen S, et al.: Toxicity profile with a large prostate volume after external beam radiotherapy for localized prostate cancer. Int J Radiat Oncol Biol Phys. 2007 (in press).
