EXTRAVAGINAL TESTICULAR TORSION: A CLINICAL ENTITY WITH UNSPECIFIED SURGICAL ANATOMY
( Download pdf )

IASON D. KYRIAZIS, JOHN DIMOPOULOS, GEORGE SAKELLARIS, JURGEN WALDSCHMIDT †, GEORGE CHARISSIS

Department of Pediatric Surgery (IDK, JD, GS, GC), University Hospital of Heraklion, Greece, and Department of Pediatric Surgery (JW, GC), Universitaetsklinikum Benjamin Franklin, Freie Universitaet Berlin, Berlin, Germany

† In memorian

ABSTRACT

     Purpose: To review and evaluate the anatomical definitions of perinatal extravaginal torsion (EVT) of the testis.
     Materials and Methods: An extensive review of the literature was made to reveal the prevalent anatomical background predisposing to EVT. Gross appearance of twisted testes obtained during surgery for 14 cases of EVT was used to test the validity of the above theories.
     Results: The most commonly accepted suggestions describe an EVT within dartos muscle that includes all layers of spermatic cord or an EVT outside parietal layer of tunica vaginalis within internal spermatic fascia. However, both of them were found inadequately documented, while a large volume of controversial data has been accumulated, that raises doubts regarding the validity of such definitions. The gross appearance of twisted testes failed to confirm both an EVT including all layers of the spermatic cord and also an EVT outside tunica vaginalis as possible mechanisms of torsion.
     Conclusion: The anatomical basis of EVT remains unclear and further investigation is required.

Key words: testis; spermatic cord; anomalous; torsion
Int Braz J Urol. 2008; 34: 617-26

INTRODUCTION

     Extravaginal torsion (EVT) of the testis is reported to be the predominant mechanism of torsion in the fetus and neonate. In this kind of torsion, twist of the spermatic cord is taking place outside the sack of tunica vaginalis in the scrotum. Accordingly, this entity is considered to have a different surgical anatomy, than the one reported in older children and adults who demonstrate the bell clapper deformity and torsion of the testis occurs intravaginally (1). This article reviews and evaluates the current theories on the anatomical basis of EVT given that the low incidence of perinatal torsion and the poorly documented anatomical findings at operation have left surgical anatomy of this clinical entity poorly defined.

MATERIALS AND METHODS

     Photographic data from 14 cases of perinatal testicular torsion, operated by Professor Waldschmidt and Professor Charissis between 1973 and 2006, were examined retrospectively to define the gross appearance of EVT. Moreover, an extensive review of the literature was carried out to reveal the most commonly accepted definitions concerning the surgical anatomy predisposing to EVT. In particular, all related articles appearing in PubMed under the search terms “extravaginal”, “perinatal”, “testicular torsion” were examined for reference in anatomy of perinatal torsion in addition with referred pathological anatomy of perinatal torsion in text books on Urology and Pediatric Surgery. Finally, evaluation of the proposed theories illustrated by our gross appearance photos of the twisted mass was performed.

RESULTS

Gross Appearance of Extravaginal Torsion

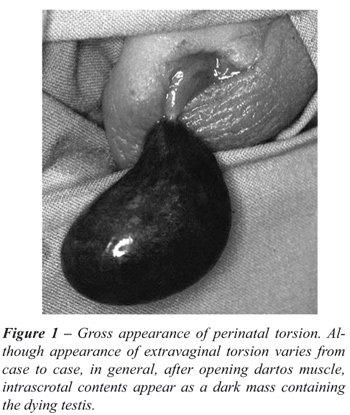

     EVT is considered to be an antenatal event and probably because of the different time intervals between time of torsion and time of observation, gross appearance of twisted mass varies from case to case. However, there were some common characteristics found in all of our cases that can be drawn and described. Our photographic data demonstrated that EVT is usually constituted by a narrow, twisted pedicle that suspends a dark globular mass containing an infracted testis and epididymis, which appears immediately after opening the skin and dartos muscle (Figure-1). Moreover, as histologically evidenced by the most substantiated work on the subject by Herman et al., twisted tissues are surrounded by a smooth membrane layer sequestering an underlying hemorrhage (2) (Figure-2). Moreover, in contrast with intravaginal torsion where torsion occurs intravaginaly, in cases of EVT, twists of the spermatic cord are located outside the cavity created by the two layers of tunica vaginalis (Figure-1,2 and 3). Finally, although due to the usual chronic character of this antenatal event in EVT scrotal anatomy is found greatly altered, and identification of particular anatomical structures within the twisted mass becomes very difficult, testicular attachments with the parietal layer of tunica vaginalis were in fact present, an observation in accordance with most other anatomical references on the subject (Figure-3) (3-5). Each theory on surgical anatomy of EVT must be consistent with these gross characteristics.

Theories on the Anatomical Basis of Extravaginal Torsion

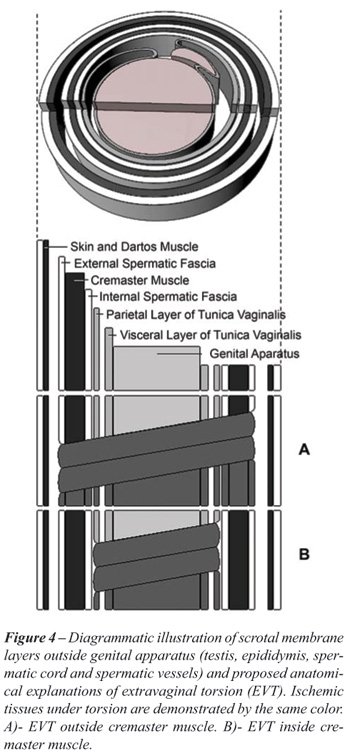

     The literature review revealed 2 controversial anatomical definitions of EVT (6,7). These describe an extravaginal torsion within dartos muscle, including all layers of the spermatic cord and an extravaginal torsion within internal spermatic fascia, outside the parietal layer of tunica vaginalis (Figure-4). For discriminative reasons we will refer to them as EVT outside or inside the cremaster muscle.

Torsion Outside Cremaster Muscle

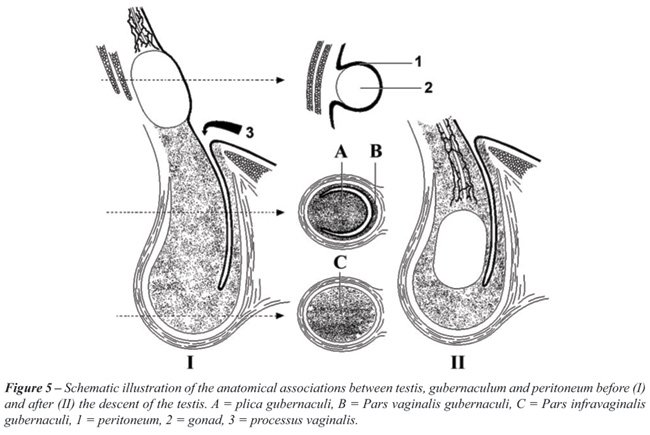

     There is evidence that in perinatal period of life a lack of attachments of the entire scrotal contents with the scrotal wall is present, allowing testis and its tunics to demonstrate an unusual mobility. Cooper (1830) and Jerkings et al. (1983) first proposed this lack of attachment because of the ease with which the intrascrotal contents could be lifted out in newborns, without tearing any fascial attachments (5,6). More precisely, external spermatic fascia does not seem to be adherent to the dartos muscle. These attachments are suggested to be formed during the first 7 to 10 days of life anchoring the spermatic cord into the scrotum (7). Numerous authors use this fact to report that EVT is predisposed by this lack of attachments and accordingly, twists of the cord occur outside cremaster muscle and its fascia (external spermatic fascia), within dartos muscle, including all layers of spermatic cord (6-9) (Figure-4a). According to this point of view, EVT should become impossible after the first days of life, when connection of testicular tunics with the scrotum is established. Gross appearance of EVT reinforce the above mentioned theory, since the black necrotic twisted mass noted immediately on opening the dartos muscle clearly indicates a torsion involving all layers of spermatic cord (Figure-3).
     However, this perinatal lack of attachments is a normal condition appearing in all newborns up to 7-10 days after birth. According to Noseworthy (2002) the above mentioned explanation of EVT poorly supports the relatively rare occurrence of this condition. If lack of fixation in all newborns was a predisposing factor for EVT, this should lead to a considerably higher incidence of EVT during the perinatal life (10). In addition, EVT has been reported in older patients at 12-14 years of age when such attachments are considered to be well established (11-13). In such cases, EVT in the presence of connection between dartos and external spermatic fascia remains unexplained by the examined theory, raising doubts on its validity.
     As regards gross appearance, given that the outer membrane layers of the spermatic cord are very thin and transparent it is almost impossible by observation alone to distinguish the exact twisted layer of spermatic cord. In contrast, histological ischemic lessons outside tunica vaginalis observed in the removed specimens after orchidectomy has never, to our knowledge, been previously documented. Furthermore, the fact that hemorrhagic fluid is always confronted within an outer membrane layer, indicates that this layer (that is the external spermatic fascia and probably inner layers too) remains intact and is not included in the ischemic tissues (Figure-4).
     Taking all the above factors into consideration, in cases of perinatal EVT doubts on whether or not external spermatic fascia is included in the twisted mass are reveled, while the mechanism that describes an EVT outside cremaster muscle including all layers of the spermatic cord remains to be defined.

Torsion Inside Cremaster Muscle

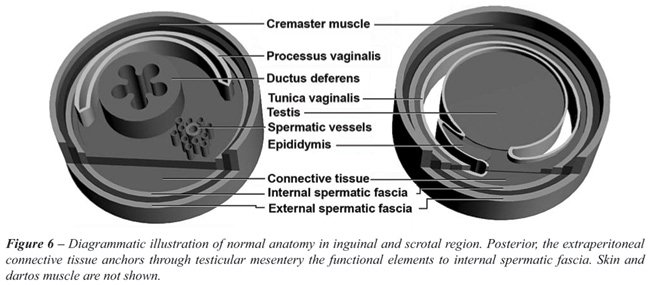

     The second theory to explain EVT is that in the full-term infant, the spermatic cord and testis are free to rotate within the inguinal canal and scrotum, due to lack of attachment between the testicular tunica vaginalis and the scrotum. Most authors refer to this theory (12,14-18) (Figure-4b). In matters of gross appearance, the smooth membrane layer usually covering the twisted mass, sequestering the underlying hemorrhagic fluid reinforce this theory, indicating that torsion occurs in an inner rather than an external spermatic layer. However, we have reasons to believe that this theory is based on a misinterpretation of the definition “lack of fixation of tunica vaginalis to the scrotum” as defined by Cooper (1830), which has been subsequently uncritically copied by most authors (5). It has usually been referred to as, “due to the recent descent of the gonad, there is an extreme mobility of tunica vaginalis within the scrotum before fixation of tunica vaginalis to the scrotal wall” (15,16), or “there is lack of firm attachment of parietal layer of tunica vaginalis with the scrotum” (2). However, literally, parietal layer of tunica vaginalis is never fixed to the scrotum, but its outer associated membranes (cremaster muscle and fascias) will. Therefore, inadequate fixation of tunica vaginalis to the scrotum is a term incorrectly used for the description of the normal lack of connections of the entire scrotal contents with the scrotal wall in the first days of life, as described by Cooper (5).
     Moreover, not only, perinatal lack of attachment between testicular tunica vaginalis and its outer associated membranes in the scrotum have never, in fact, been documented, but also there is no obvious etiological reason to explain why such a lack should be present in the first place. During embryogenesis, both the parietal layer of tunica vaginalis (derivative of the peritoneum forming the parietal layer of processus vaginalis) and the derived by the pars vaginalis gubernaculum outer associated membranes (internal spermatic fascia, cremaster muscle and external spermatic fascia) were never separate (19). This firm relationship negates the possibility of a perinatal absence of such attachments (Figure-5).



     On the contrary, even assuming an absence of attachments between tunica vaginalis and internal spermatic fascia, torsion outside tunica vaginalis could not possibly occur. Given that in EVT testicular anatomy is considered to be normal (absence of bell clapper deformity) in scrotal and inguinal region the testis, epididymis, spermatic vessels and vas deference lie posteriorly connected with the internal spermatic fascia through a wide mesentery (mesogonadal - mesorcheon) and cannot move freely (20) (Figure-6).


     These factors prove that, there is no embryological basis to support a perinatal lack of tunica vaginalis attachments with the internal spermatic fascia, while as in every scrotum with normal anatomy, in cases of EVT, rotation inside cremaster muscle cannot occur (21).

COMMENTS

     The validity of the anatomical basis of EVT has been previously questioned. Mushat (1932) in his work on mechanism of testicular torsion raised doubts on whether EVT was actually possible (21). Additional doubts on whether current anatomical interpretation is correct are derived from data suggesting the possibility of the existence of a bell clapper deformity in case of perinatal torsion. As stated above and demonstrated by our photographic data EVT is considered to be characterized by connection of testis with tunica vaginalis, in contrast with intravaginal torsion where posterior attachment of testis with tunica vaginalis is absent and scrotal structures demonstrate the bell clapper deformity. Investigation of contralateral testes in cases of vanishing testis syndrome, a condition representing the final effect of antenatal torsion revealed the presence of a contralateral bell clapper deformity in the remarkable percentage of 86% of cases (15,22-25). Given that bell clapper deformity is usually bilateral, existence in the ipsilateral, where antenatal torsion has occurred, of a bell clapper deformity as well before the vanishing event is very possible. Therefore, the question whether presence of connection between testis and tunica vaginalis in case of EVT represents normal anatomy or fibrotic connections of an underlying bell clapper deformity due to the chronic character of this antenatal event remains to be defined. This fact would reinforce the majority of authors, who support an EVT within dartos muscle, though under a different hypothesis than the one proven to be incorrect by our study.

CONCLUSION

     In summary, the two most commonly accepted anatomical definitions of perinatal testicular torsion namely an extravaginal torsion within dartos muscle, including all layers of spermatic cord and an extravaginal torsion outside parietal layer of tunica vaginalis within internal spermatic fascia remain questionable. In the first case, although there is evidence of perinatal lack of attachments between external spermatic fascia and dartos muscle, such torsion has not been proved with certainty. On the contrary, a large body of literature argues against this explanation. In the second case, doubts on whether there is lack of attachments between testicular tunica vaginalis and scrotum have been revealed. Yet, even if such a lack was actually present, testicular torsion inside internal spermatic fascia would still be impossible, since genital apparatus remains fixed by its wide mesorchium to external membrane layers of the scrotum. Finally, suspicions regarding the existence of a bell clapper deformity in all cases of EVT were raised, a fact confronting the current understanding of the condition. It is concluded that the prevalent anatomical definitions of EVT fail to explain adequately the phenomenon of perinatal torsion and to allow an evidence based documentation of the indicated treatment modality. EVT still remains a condition of unknown etiology, pathophysiology and surgical anatomy and thus further investigation in the field is required.

CONFLICT OF INTEREST

     None declared.
