RADIAL DILATION OF NEPHROSTOMY BALLOONS: A COMPARATIVE ANALYSIS
( Download pdf )

KARI HENDLIN, MANOJ MONGA

Departments of Urologic Surgery, VAHCS Minneapolis, University of Minnesota, Minneapolis, Minnesota, USA

ABSTRACT

     Purpose: The dynamics of percutaneous balloon expansion may differ with increasing extrinsic compressive forces and increasing inflation pressures. This study compares the ability of percutaneous balloons to expand under different radial constrictive forces.
     Materials and Methods: Three 30F nephrostomy balloons were tested: Bard X-Force™, Boston Scientific Microvasive Amplatz Tractmaster™, and Cook Ultraxx™. With a super stiff guidewire in place, the balloon tip was secured by elevated vice grips on either side of the balloon. A string was wrapped around the balloon center once, and incremental increases in load were added (2g, 42g, 82g, and 122g) to represent increasing extrinsic compression. The balloon was inflated with a contrast agent and circumference changes were measured at increments of 4 ATM, 10 ATM, and burst pressure. Balloons were tested in triplicate for each load.
     Results: All balloons were unable to reach 90% of their expected diameter with larger constrictive loads (122g) at low (4 ATM) and nominal (10 ATM) inflation pressures. Only the Bard and Cook balloons reached at least 90% of the expected diameter with a coefficient of variance (CV) less than 10% at burst pressure under the larger constrictive load (122g), 94.3% ± 6.7%, CV 7.1% and 96.3% ± 2.9%, CV 3.0% respectively. All balloons performed well under low constriction forces and reached at least 80% of the expected diameter by 10 ATM under all constrictive loads.
     Conclusions: The Bard X-Force and Cook Ultraxx percutaneous nephrostomy balloons achieved the most reliable radial dilation against large constrictive forces simulating fascial or retroperitoneal scar tissue.

Key words: balloon dilation; percutaneous nephrolithotomy; renal calculi
Int Braz J Urol. 2008; 34: 546-54

INTRODUCTION

     Percutaneous renal access is an important component of many complex procedures including stone extraction, antegrade endopyelotomy, and resection of transitional cell carcinoma of the upper urinary tract. The choice of nephrostomy tract dilation technique is significant in minimizing the risk of complications such as blood loss and perforation of the collecting system. Approaches to percutaneous nephrostomy tract dilation have included serially introduced, progressive fascial dilators, Amplatz dilator sets, metal coaxial dilators and high pressure balloons. Balloon systems have recently become the instrument of choice as they allow for one-step dilation, minimized total operative and fluoroscopic time, and reduced risk of hemorrhage in comparison to other methods of tract dilation (1-3). It has been proposed that the lateral compressive forces produced by the balloons are less traumatic and thereby minimize complications in comparison to the angular shearing forces exerted by successive dilation methods (1,4).
     The dynamics of percutaneous balloon expansion may differ with increasing extrinsic compressive forces and increasing inflation pressures. This study compares the ability of several percutaneous balloons to expand under different radial constrictive forces.

MATERIALS AND METHODS

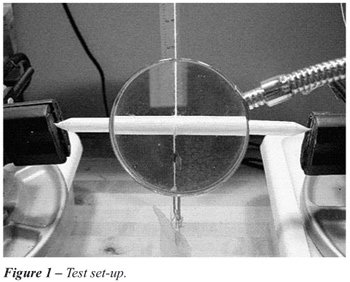

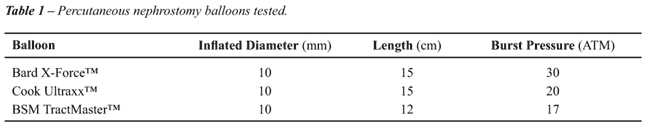

     Three 30 Fr nephrostomy balloons were tested: Bard X-Force™ (Bard, Covington, GA) Boston Scientific Microvasive Amplatz Tractmaster™ (Boston Scientific, Natick, MA), and Cook Ultraxx™ (Cook Urological, Spencer, IN) (Table-1). Testing methods used were the same as those used to test commercially available ureteral balloons (5). The initial circumference, prior to any inflation, was measured at the balloon center. With a super stiff guidewire in place, the balloon tip was secured by elevated vise grips on either side of the balloon (Figure-1). A small plastic bag for adding radial load was attached to a string, which was wrapped around the balloon once and then secured so that the bag was hanging between the vice grips and centered beneath the balloon. A ruler measuring 1/100th of an inch was secured vertically to the ledge directly behind the center of the balloon. Contrast solution was mixed in a 1:1 ratio with water. A Cook inflation device (Patent no. 5,860,955) was used to inject contrast solution into the balloon inflation port. Pressure was increased and the change in balloon circumference was recorded at pressures of 4 ATM, 10 ATM and burst pressure. Balloons were tested three times consecutively for each radial load of 2g, 42g, 82g, and 122g. These loads were selected to evaluate balloon performance through a range of simulated constrictive forces. These constrictive forces have previously been demonstrated to be effective at eliciting differences in balloon performance for ureteral balloons (5). Statistical comparisons were performed using 95% confidence intervals, ANOVA, and one-sample t-tests compared to 100% inflation diameter per manufacturer. A p value < 0.05 was considered statistically significant. Results were reported as coefficient of variance (%), mean (%) ± standard deviation (%).




RESULTS

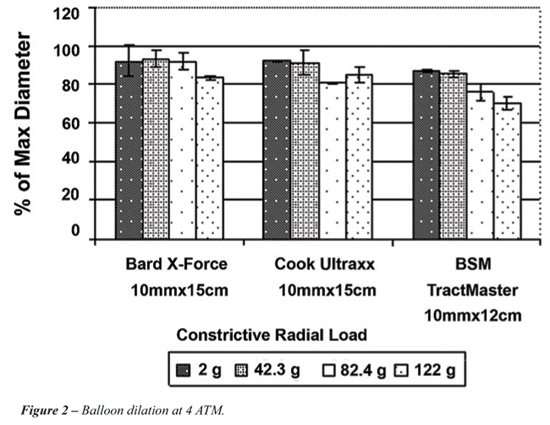

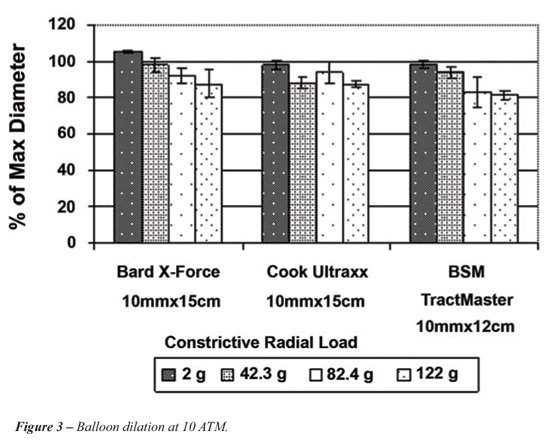

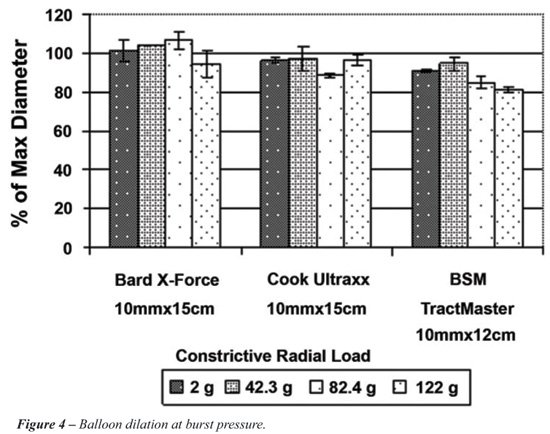

     All balloons were unable to reach 90% of their expected diameter with larger constrictive loads (122g) at low (4 ATM) and nominal (10 ATM) inflation pressures (Figure-2 and Figure-3). Only the Bard X-Force™ and Cook Ultraxx™ balloons reached at least 90% of the expected diameter with a coefficient of variance (CV) less than 10% at burst pressure under the larger constrictive load (122g), (94.3% ± 6.7%, CV 7.1% and 96.3%% ± 2.9%, CV 3.0% respectively) (Figure-4) (Table-2).

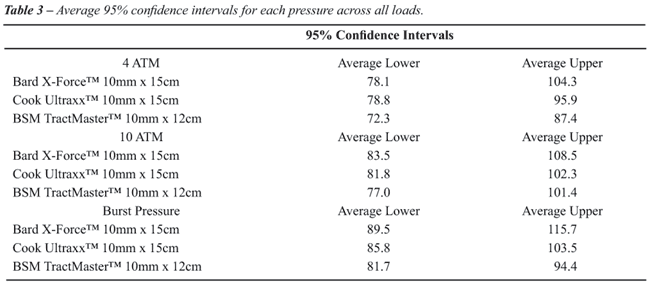

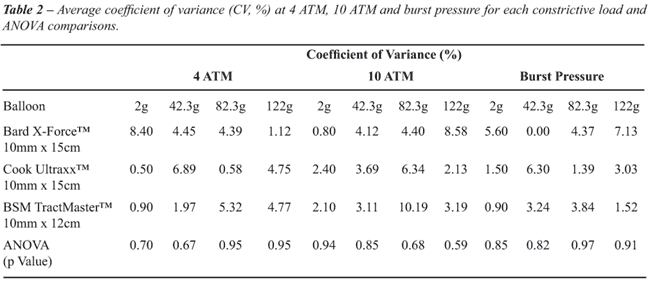

     All balloons performed well under low constriction forces and reached at least 80% of the expected diameter by 10 ATM under all constrictive loads. Overall, the 95% confidence intervals for each pressure over all loads were not significantly different (Table-3). The ANOVA comparisons between the 3 balloons for each pressure and load were not statistically significant (Table-2). When compared to the anticipated inflated balloon diameter as stated per the manufacturer, all balloons performed radial dilation notably less than expected for all constrictive loads at low pressure, 4 ATM, p < 0.02. However, radial dilation was significantly closer to the projected inflated balloon diameter at 10 ATM under lower constrictive forces (2 and 42.3g, p > 0.5) but not for higher constrictive forces (82.4-122g, p < 0.04). All balloons were best able to reach the expected inflated balloon diameter for all constrictive forces at burst pressure, p > 0.05.


COMMENTS

     The ability to obtain optimal percutaneous access is critical with respect to percutaneous nephrolithotomy (PCNL)-related complications including blood loss. Overall, technical success rates have been shown to be higher with fewer complications when access is obtained by a urologist versus an interventional radiologist (6). In particular, loss of tract access and pelviocalyceal tears can lead to excessive bleeding and blood transfusion. While most PCNL-related bleeding can be managed conservatively, up to 6% of patients require a blood transfusion (6).
     Clinical and animal studies have shown similar blood loss, renal damage, and chronic renal function changes when comparing Amplatz and balloon dilation systems under a single puncture setting (2,7). Moreover, histological similarities between the acute and chronic effects on the renal parenchyma suggest that the choice of dilatation can be based on physician preference (8). However, each method has potential benefits. Balloon systems can be accurately placed minimizing the risk of creating a false passage, are quick to use, and provide compressive hemostasis (2,3,7-10). Balloon dilation is considered to be the safest method of percutaneous tract dilation with proper placement and use (1-3,7,11). Radial dilation results in less renal movement away from the surgeon compared to longitudinal shearing forces as seen with other methods of track dilation. In addition, the minimization of tissue trauma and the pressure tamponade effect of the balloon may decrease blood loss.
     However, balloon dilation is not able to create sufficient renal access in all patients. Joel et al. found balloon failure to occur in 17% of patients overall, including a 25% risk of failure in patients with a history of prior renal surgery compared to 8% of patients with no prior history (12). In addition, stone burden, patient body mass index (BMI), and history of pyelonephritis were not shown to be predictors for balloon failure (12).
     Manual balloon inflation allows for controlled incremental changes in pressure; yet, this does not correlate with proportional changes in balloon diameter as we have shown in our study. Pressures of 4 to 5 ATM are typically sufficient to dilate a nephrostomy tract in patients with no prior renal surgery while higher pressures are necessary to achieve full dilation in those with a history of renal surgery due to retroperitoneal scar tissue (13). During balloon inflation, a characteristic “waist” will appear in areas of high resistance such as the renal capsule or a previous operative scar (14). The amount of force required to eliminate the waist will vary according to the degree of resistance and must exceed the resistance according to Newton’s second law. Even so, this limiting force threshold may not be obtainable at full inflation. The uniaxial nature of the applied force during balloon inflation maximizes the net force in the direction of radial dilation in comparison to other dilator systems where dispersion of forces limit effectiveness under the same net force and are also subject to a friction force, or drag.
     In this situation of significant perirenal or renal fibrosis or scarring, Metal Alken dilators and fascial dilators tend to be more effective than high pressure balloons (13-15). It is feasible that the newly developed balloon dilators with a burst pressure of 30 ATM may be successful in these situations. Other potential downsides to using balloon dilation include high cost, fixed length, and lack of effectiveness in the face of dysmorphic body habitus or severe fibrosis (14).
     During our previous years of experience with the Boston Scientific Trackmaster™ we had noted that in approximately 5-10% of procedures, we would need to convert to use of an Amplatz dilator set due to persistent waisting of the balloon after full-inflation. Since completing this study, we have successfully performed 60 PCNL procedures with the use of the Bard X-Force™ without any failures.
